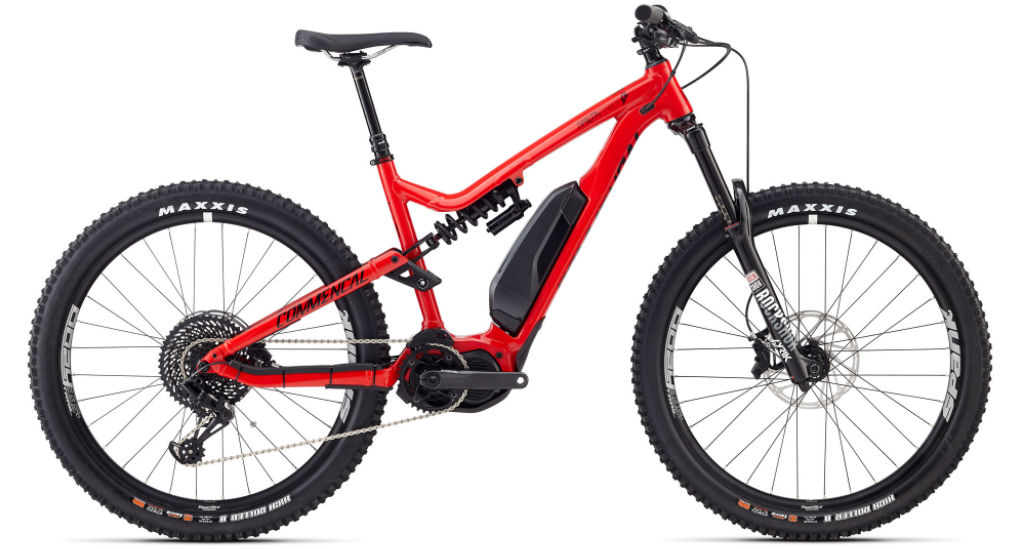

2018 Commencal Meta Power geometry
Full frame geometry for the 2018 Commencal Meta Power, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 615 | 415 | 75 | 66 | 105 | 577 | 400 | 705 | 17 | 444 | 1180 |
| M | 619 | 435 | 75 | 66 | 110 | 599 | 440 | 715 | 17 | 444 | 1201 |
| L | 624 | 458 | 75 | 66 | 120 | 624 | 490 | 743 | 17 | 444 | 1226 |
| XL | 629 | 481 | 75 | 66 | 125 | 648 | 520 | 750 | 17 | 444 | 1251 |
All measurements in millimetres unless marked (°) for angles.
