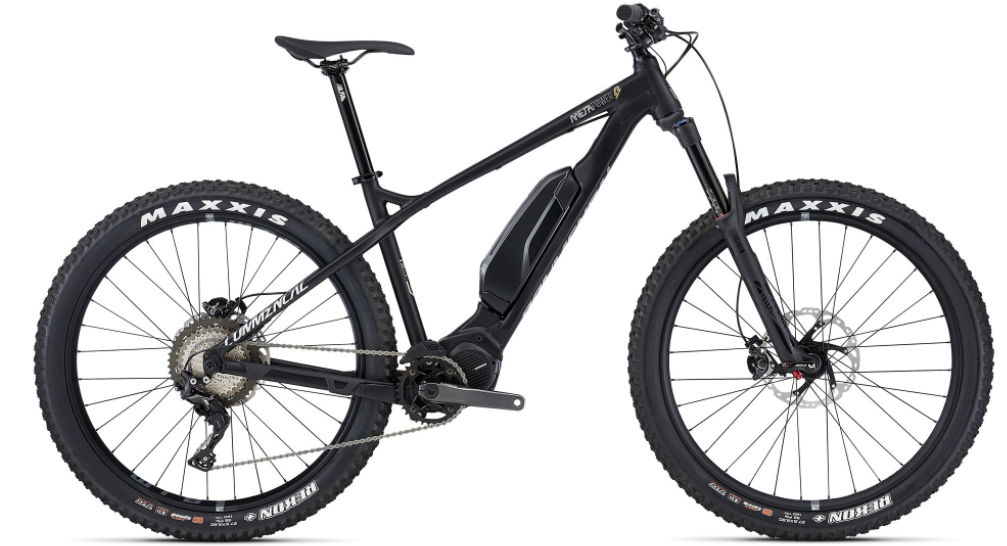

2018 Commencal Meta HT Power geometry
Full frame geometry for the 2018 Commencal Meta HT Power, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 634 | 400 | 73 | 66 | 100 | 588 | 400 | 725 | 55 | 435 | 1145 |
| M | 644 | 420 | 73 | 66 | 110 | 617 | 440 | 735 | 55 | 435 | 1169 |
| L | 648 | 445 | 73 | 66 | 115 | 637 | 490 | 747 | 55 | 435 | 1196 |
| XL | 653 | 470 | 73 | 66 | 120 | 663 | 520 | 796 | 55 | 435 | 1223 |
All measurements in millimetres unless marked (°) for angles.
