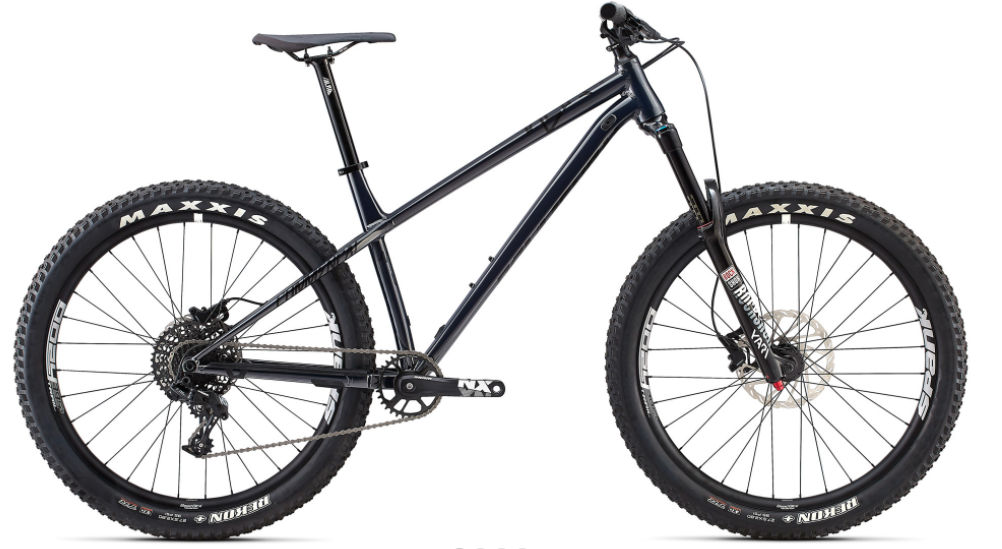

2018 Commencal Meta HT AM geometry
Full frame geometry for the 2018 Commencal Meta HT AM, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 630 | 400 | 74 | 65 | 115 | 581 | 400 | 725 | 40 | 428 | 1152 |
| M | 634 | 420 | 74 | 65 | 120 | 602 | 440 | 735 | 40 | 428 | 1174 |
| L | 639 | 445 | 74 | 65 | 125 | 628 | 490 | 747 | 40 | 428 | 1201 |
| XL | 643 | 470 | 74 | 65 | 130 | 655 | 520 | 796 | 40 | 428 | 1228 |
All measurements in millimetres unless marked (°) for angles.
