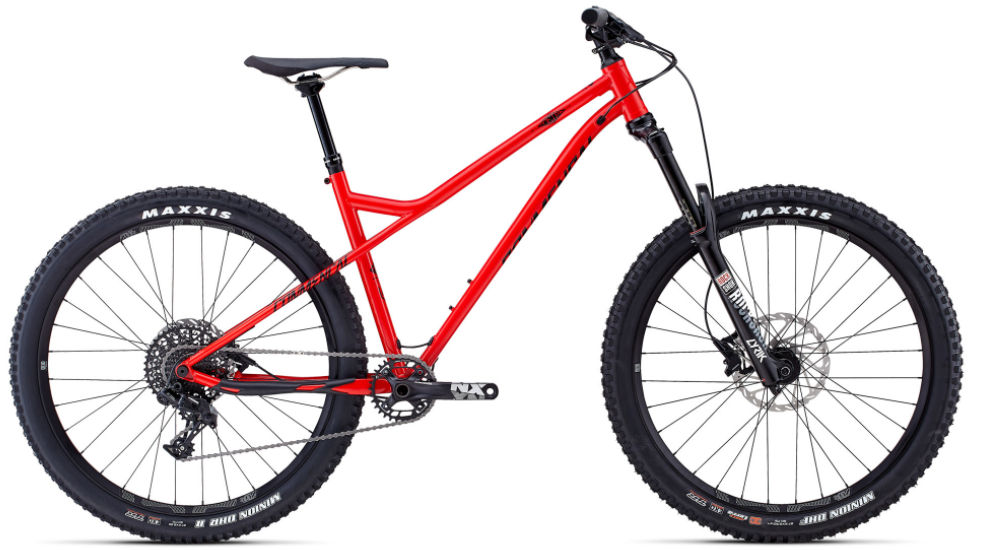

2018 Commencal Meta HT AM CRMO geometry
Full frame geometry for the 2018 Commencal Meta HT AM CRMO, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 624 | 400 | 74 | 65 | 105 | 579 | 400 | 725 | 45 | 428 | 1147 |
| M | 635 | 420 | 74 | 65 | 115 | 602 | 440 | 735 | 45 | 428 | 1171 |
| L | 639 | 445 | 74 | 65 | 120 | 628 | 490 | 747 | 45 | 428 | 1198 |
| XL | 645 | 470 | 74 | 65 | 125 | 655 | 520 | 796 | 45 | 428 | 1225 |
All measurements in millimetres unless marked (°) for angles.
