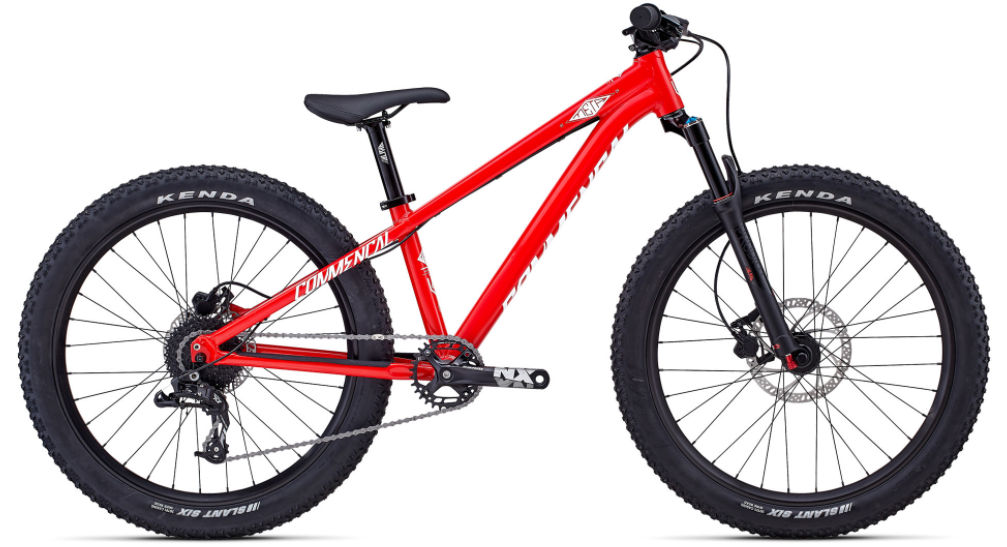

2018 Commencal Meta HT 24 geometry
Full frame geometry for the 2018 Commencal Meta HT 24, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 24 | 513 | 335 | 73 | 67 | 105 | 492 | 300 | 530 | 25 | 410 | 1002 |
All measurements in millimetres unless marked (°) for angles.
