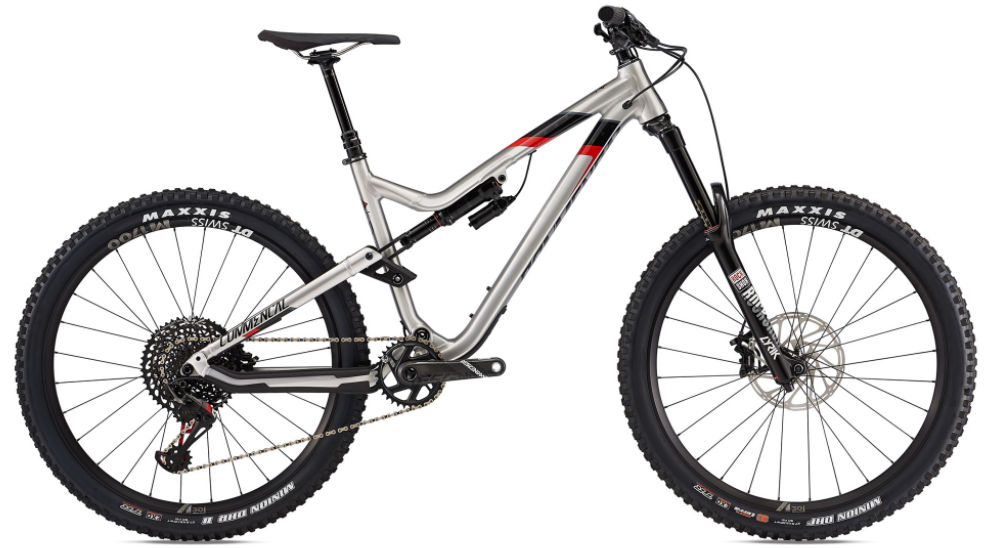

2018 Commencal Meta AM V4.2 geometry
Full frame geometry for the 2018 Commencal Meta AM V4.2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 602 | 413 | 74 | 65.5 | 110 | 580 | 400 | 705 | 12 | 437 | 1166 |
| M | 608 | 435 | 74 | 65.5 | 115 | 603 | 440 | 715 | 12 | 437 | 1190 |
| L | 612 | 458 | 74 | 65.5 | 120 | 628 | 490 | 743 | 12 | 437 | 1215 |
| XL | 616 | 482 | 74 | 65.5 | 125 | 653 | 520 | 750 | 12 | 437 | 1241 |
All measurements in millimetres unless marked (°) for angles.
