2018 Commencal · MD

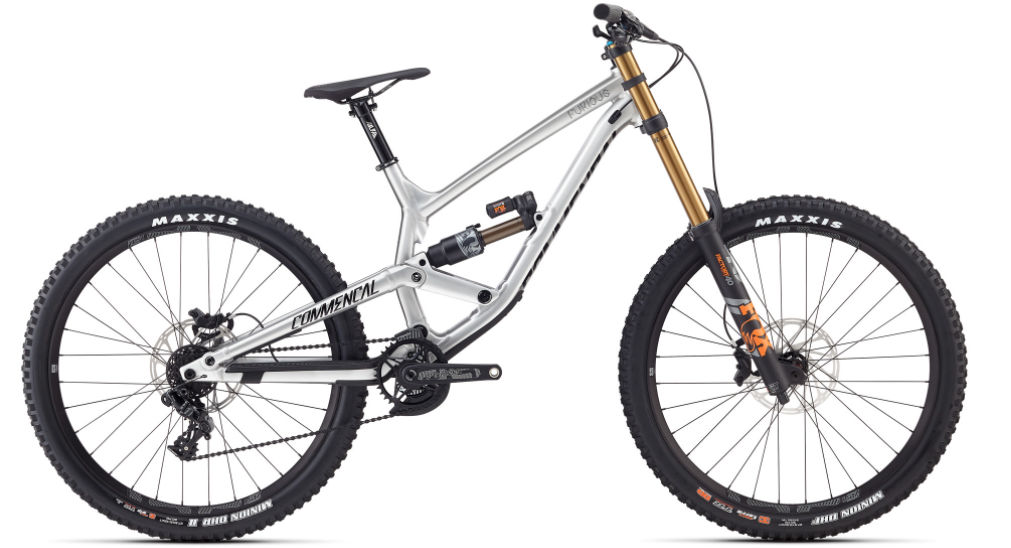

2018 Commencal Furious MK I geometry
Full frame geometry for the 2018 Commencal Furious MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 623 | 440 | 63 | 63.5 | 125 | 595 | 400 | 740 | 7 | 440 | 1240 |
| M | 623 | 415 | 63 | 63.5 | 125 | 570 | 400 | 740 | 7 | 440 | 1214 |
| S | 623 | 395 | 63 | 63.5 | 125 | 550 | 400 | 740 | 7 | 440 | 1199 |
| XL | 623 | 470 | 63 | 63.5 | 125 | 625 | 400 | 740 | 7 | 440 | 1270 |
All measurements in millimetres unless marked (°) for angles.
