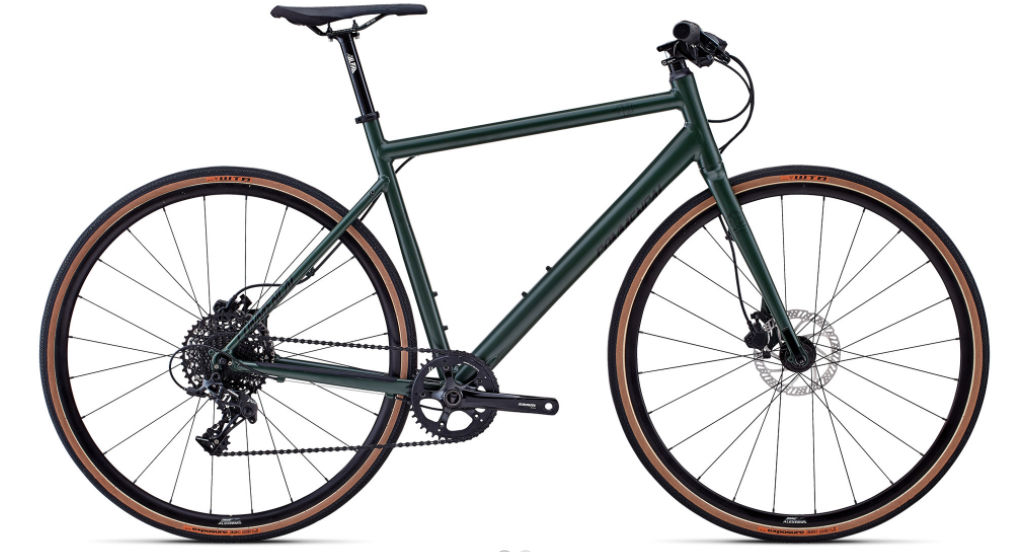

2018 Commencal FCB geometry
Full frame geometry for the 2018 Commencal FCB, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 558 | 380 | 73.5 | 71.5 | 155 | 545 | 490 | 820 | 65 | 416 | 1006 |
| S | 563 | 398 | 73.5 | 71.5 | 160 | 565 | 510 | 840 | 65 | 416 | 1020 |
| M | 568 | 417 | 73.5 | 71.5 | 165 | 585 | 530 | 860 | 65 | 416 | 1035 |
| L | 573 | 435 | 73.5 | 71.5 | 170 | 605 | 550 | 880 | 65 | 416 | 1060 |
| XL | 578 | 469 | 73.5 | 71.5 | 175 | 640 | 570 | 900 | 65 | 416 | 1100 |
All measurements in millimetres unless marked (°) for angles.
