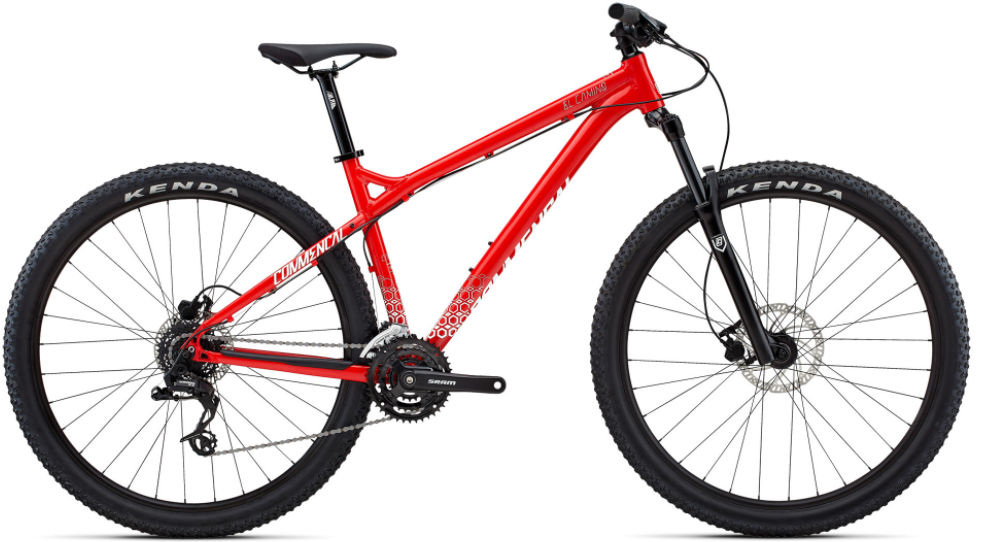

2018 Commencal El Camino geometry
Full frame geometry for the 2018 Commencal El Camino, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 621 | 415 | 74 | 67.5 | 105 | 593 | 400 | 755 | 50 | 435 | 1139 |
| M | 626 | 435 | 74 | 67.5 | 110 | 615 | 440 | 775 | 50 | 435 | 1161 |
| L | 631 | 460 | 74 | 67.5 | 115 | 640 | 490 | 795 | 50 | 435 | 1186 |
| XL | 636 | 485 | 74 | 67.5 | 120 | 665 | 520 | 800 | 50 | 435 | 1213 |
All measurements in millimetres unless marked (°) for angles.
