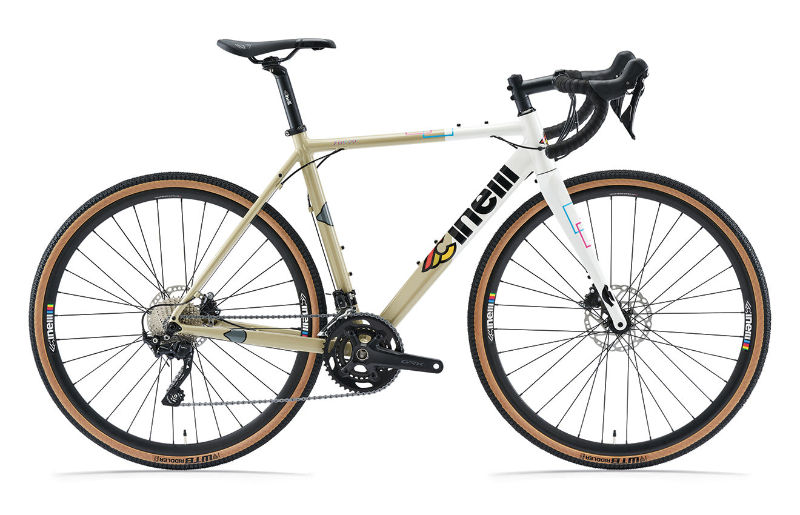

2024 Cinelli Zydeco geometry
Full frame geometry for the 2024 Cinelli Zydeco, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 510 | 371 | 74.5 | 70.5 | 100 | 510 | 490 | 745 | 70 | 580 | 440 | 1010 | 47 |
| S | 530 | 375 | 74.5 | 71 | 120 | 520 | 510 | 765 | 70 | 587 | 440 | 1017 | 47 |
| M | 551 | 380 | 74 | 71.5 | 140 | 539 | 540 | 791 | 70 | 595 | 440 | 1025 | 47 |
| L | 572 | 390 | 73.5 | 72 | 160 | 560 | 560 | 810 | 70 | 606 | 440 | 1037 | 47 |
| XL | 592 | 399 | 73 | 72.5 | 180 | 580 | 590 | 835 | 70 | 617 | 440 | 1047 | 47 |
All measurements in millimetres unless marked (°) for angles.
