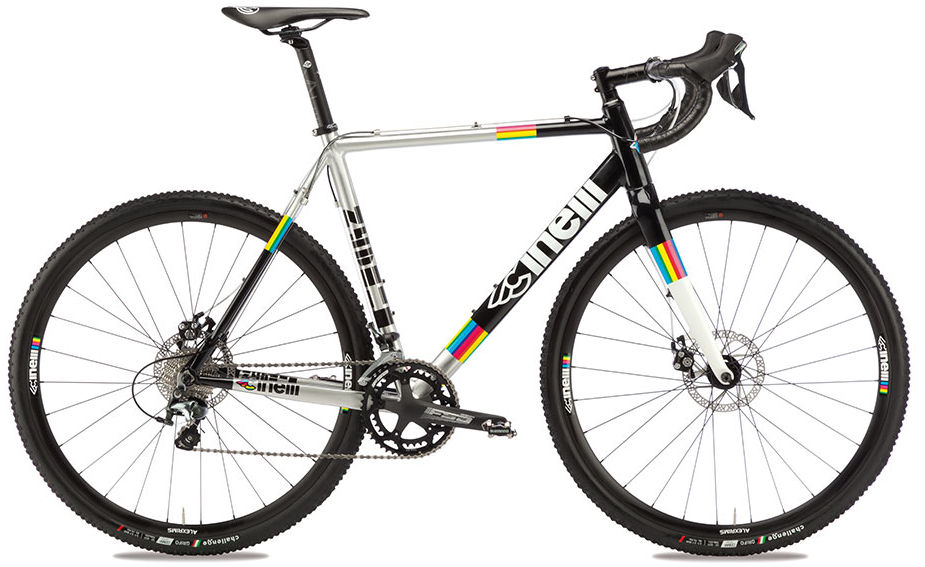

2016 Cinelli Zydeco MKI geometry
Full frame geometry for the 2016 Cinelli Zydeco MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 515 | 377 | 74.5 | 71 | 110 | 520 | 510 | 775 | 58 | 585 | 425 | 1003 | 45 |
| M | 538 | 386 | 74 | 72 | 130 | 540 | 535 | 797 | 58 | 592 | 425 | 1010 | 45 |
| L | 563 | 393 | 73.5 | 72.5 | 155 | 560 | 560 | 822 | 58 | 603 | 425 | 1021 | 45 |
| XL | 589 | 400 | 73 | 73 | 180 | 580 | 590 | 848 | 58 | 612 | 425 | 1030 | 45 |
| XXL | 613 | 413 | 73 | 73 | 205 | 600 | 610 | 872 | 58 | 632 | 425 | 1050 | 45 |
All measurements in millimetres unless marked (°) for angles.
