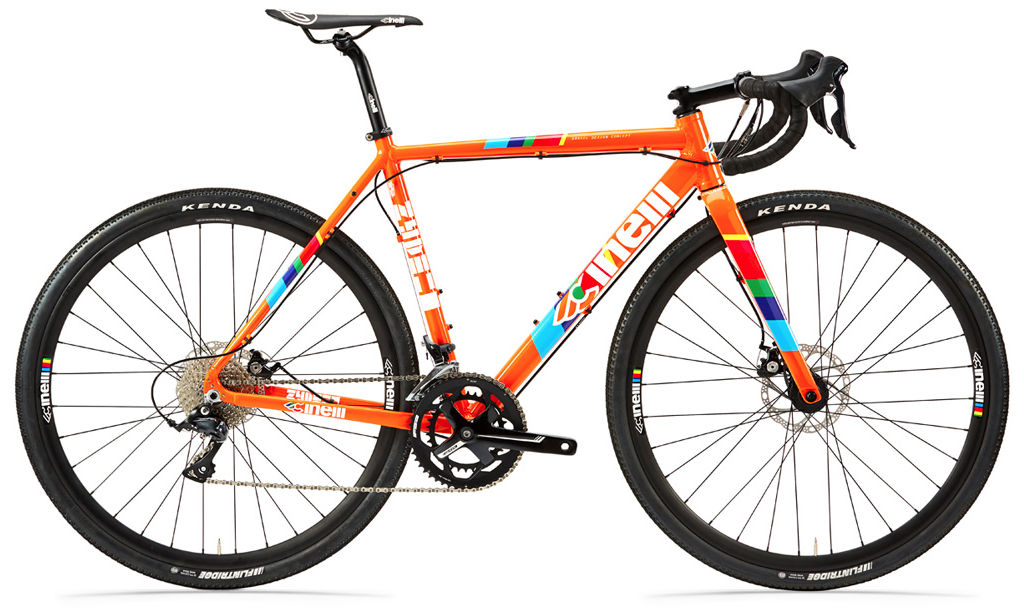

2019 Cinelli Zydeco Lala geometry
Full frame geometry for the 2019 Cinelli Zydeco Lala, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 508 | 369 | 74.5 | 69.5 | 90 | 510 | 490 | 758 | 71 | 585 | 440 | 1015 | 45 | 84 |
| S | 528 | 374 | 74.5 | 70 | 110 | 520 | 510 | 780 | 70 | 592 | 440 | 1023 | 45 | 81 |
| M | 549 | 383 | 74 | 70.5 | 130 | 540 | 540 | 806 | 70 | 604 | 440 | 1034 | 45 | 77 |
| L | 570 | 391 | 73.5 | 71 | 150 | 560 | 560 | 828 | 70 | 615 | 440 | 1045 | 45 | 74 |
| XL | 590 | 400 | 73 | 71.5 | 170 | 580 | 590 | 854 | 70 | 625 | 440 | 1055 | 45 | 71 |
All measurements in millimetres unless marked (°) for angles.
