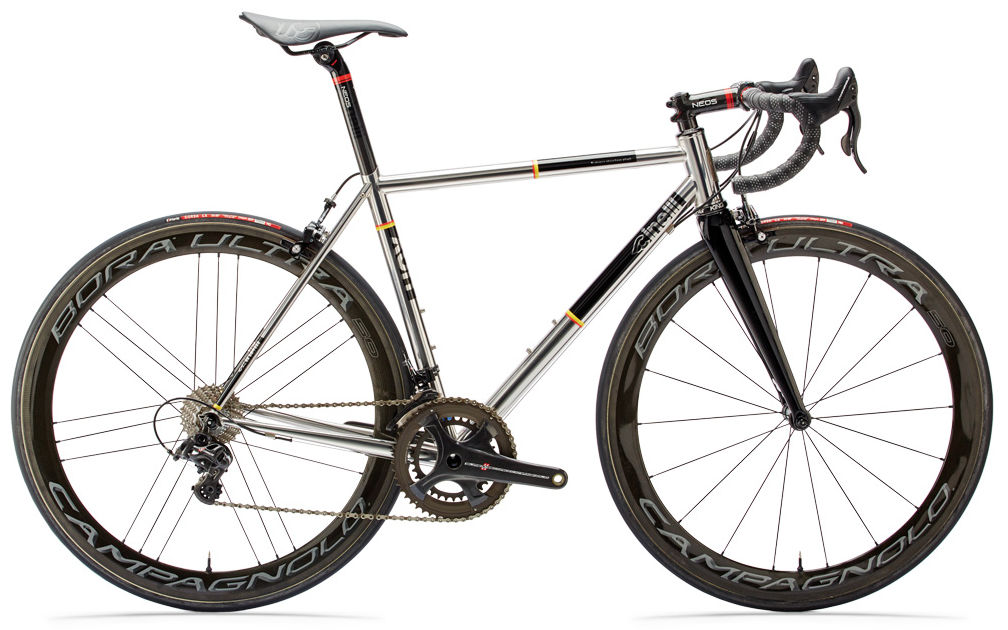

2018 Cinelli XCR MKII geometry
Full frame geometry for the 2018 Cinelli XCR MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 491 | 378 | 74.5 | 71.5 | 98 | 515 | 450 | 725 | 73 | 570 | 403 | 962 | 45 | 65 |
| S | 498 | 382 | 74 | 72 | 104 | 525 | 480 | 738 | 73 | 572 | 405 | 966 | 45 | 62 |
| M | 516 | 390 | 73.5 | 73 | 121 | 545 | 500 | 762 | 71 | 579 | 405 | 974 | 45 | 56 |
| L | 535 | 396 | 73 | 73.5 | 139 | 560 | 530 | 787 | 71 | 583 | 408 | 981 | 45 | 53 |
| XL | 560 | 403 | 72.5 | 73.5 | 172 | 580 | 560 | 816 | 68 | 599 | 408 | 997 | 45 | 53 |
All measurements in millimetres unless marked (°) for angles.
