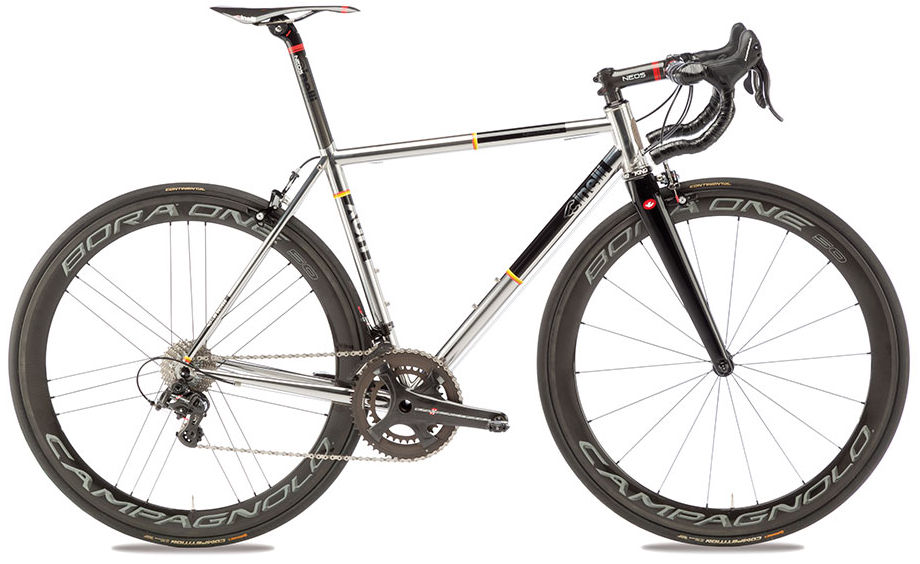

2016 Cinelli XCR MKI geometry
Full frame geometry for the 2016 Cinelli XCR MKI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 502 | 376 | 74.5 | 71.5 | 98 | 515 | 450 | 725 | 73 | 570 | 403 | 962 | 45 |
| S | 509 | 379 | 74 | 72 | 104 | 525 | 480 | 738 | 73 | 572 | 405 | 966 | 45 |
| M | 527 | 389 | 73.5 | 73 | 121 | 545 | 500 | 762 | 71 | 579 | 405 | 974 | 45 |
| L | 546 | 393 | 73 | 73.5 | 139 | 560 | 530 | 787 | 71 | 583 | 408 | 981 | 45 |
| XL | 574 | 399 | 72.5 | 73.5 | 172 | 580 | 560 | 519 | 68 | 599 | 408 | 997 | 45 |
All measurements in millimetres unless marked (°) for angles.
