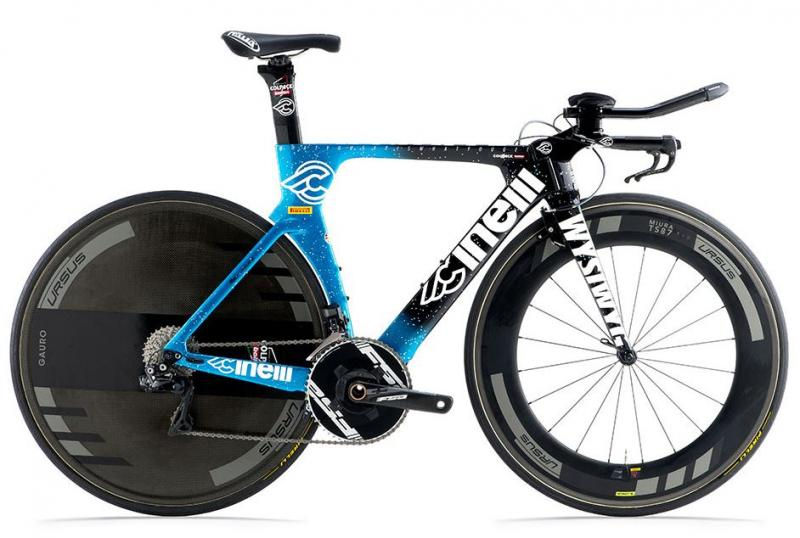

2022 Cinelli WYSIWYG geometry
Full frame geometry for the 2022 Cinelli WYSIWYG, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 468 | 376 | 75 | 71 | 61 | 501 | 449 | 75 | 395 | 946 | 45 |
| S | 483 | 382 | 75 | 72.5 | 72 | 512 | 528 | 75 | 395 | 946 | 45 |
| M | 493 | 400 | 75 | 72.5 | 82 | 533 | 537 | 75 | 395 | 967 | 45 |
| L | 510 | 414 | 75 | 72.5 | 99 | 551 | 554 | 75 | 395 | 987 | 45 |
| XL | 527 | 428 | 75 | 72.5 | 118 | 570 | 571 | 75 | 395 | 1006 | 45 |
All measurements in millimetres unless marked (°) for angles.
