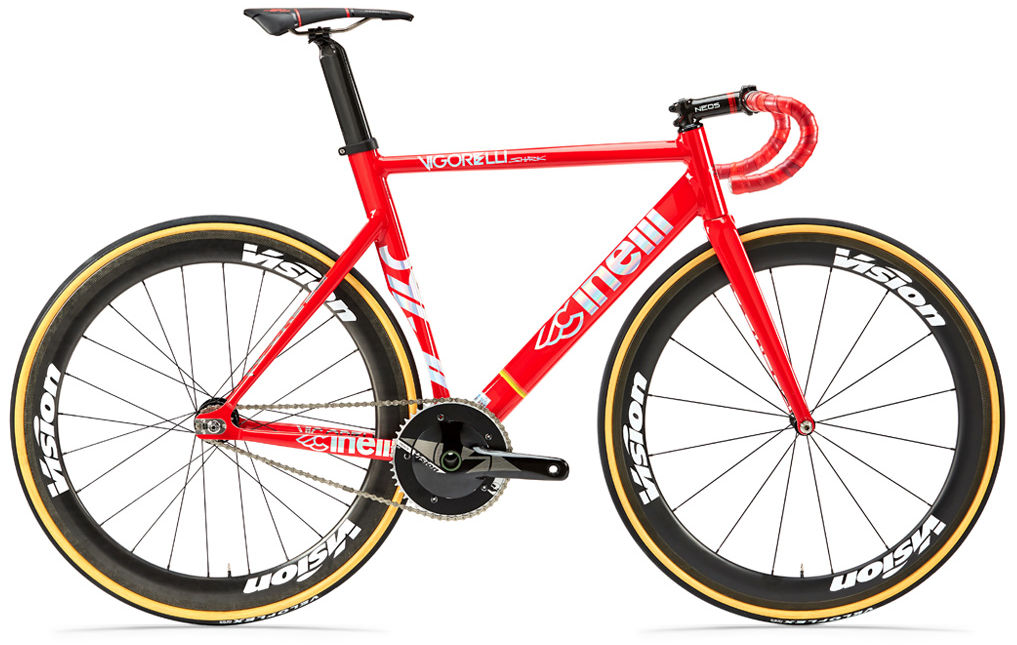

2019 Cinelli Vigorelli Shark geometry
Full frame geometry for the 2019 Cinelli Vigorelli Shark, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 509 | 386 | 74.5 | 73 | 114 | 515 | 500 | 750 | 61 | 574 | 380 | 945 | 45 | 57 |
| S | 525 | 394 | 74 | 73 | 134 | 538 | 520 | 772 | 58 | 587 | 382 | 962 | 45 | 57 |
| M | 542 | 395 | 73.5 | 73.5 | 150 | 542 | 540 | 789 | 58 | 588 | 383 | 964 | 45 | 53 |
| L | 561 | 399 | 73.5 | 73.5 | 170 | 552 | 560 | 808 | 58 | 598 | 384 | 975 | 45 | 53 |
| XL | 578 | 404 | 72.5 | 73.5 | 188 | 580 | 590 | 831 | 58 | 608 | 385 | 986 | 45 | 53 |
All measurements in millimetres unless marked (°) for angles.
