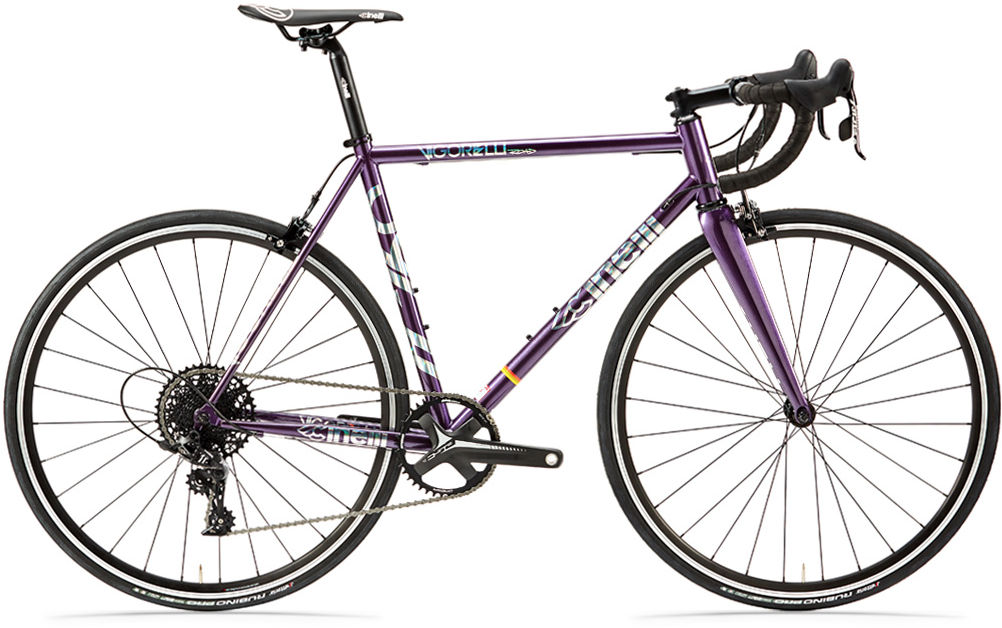

2019 Cinelli Vigorelli Road geometry
Full frame geometry for the 2019 Cinelli Vigorelli Road, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 498 | 379 | 75 | 73 | 100 | 512 | 470 | 747 | 53 | 568 | 403 | 965 | 45 | 57 |
| S | 515 | 392 | 75 | 74 | 114 | 535 | 500 | 770 | 53 | 578 | 404 | 976 | 45 | 50 |
| M | 533 | 397 | 74 | 74 | 136 | 550 | 530 | 796 | 50 | 589 | 405 | 989 | 45 | 50 |
| L | 552 | 399 | 73.5 | 74 | 156 | 562 | 560 | 820 | 50 | 596 | 406 | 997 | 45 | 50 |
| XL | 571 | 400 | 73 | 74 | 174 | 575 | 590 | 840 | 50 | 599 | 407 | 988 | 45 | 50 |
All measurements in millimetres unless marked (°) for angles.
