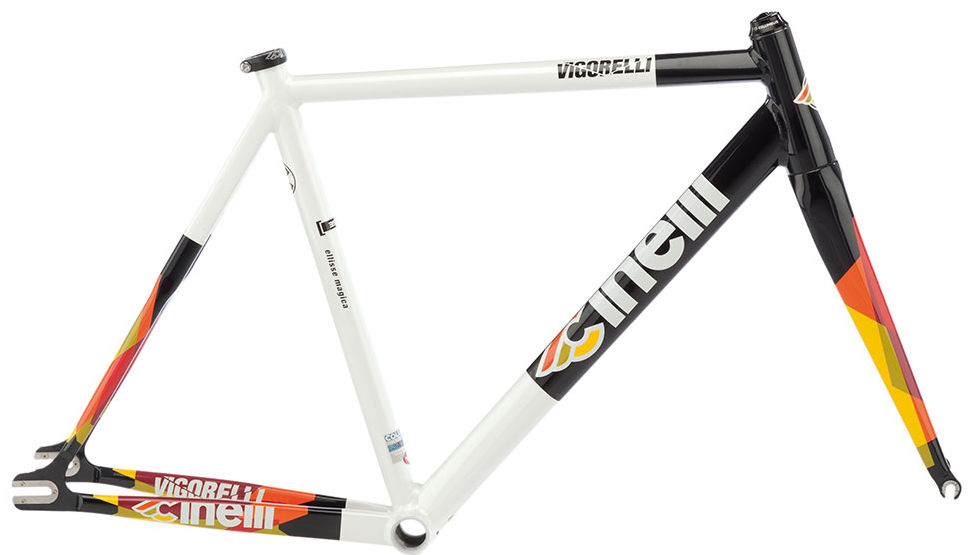

2016 Cinelli Vigorelli ALU MK I geometry
Full frame geometry for the 2016 Cinelli Vigorelli ALU MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 509 | 388 | 75.5 | 72.5 | 114 | 520 | 500 | 760 | 58 | 570 | 389 | 952 | 35 |
| S | 528 | 394 | 75 | 72.5 | 134 | 535 | 520 | 780 | 58 | 582 | 390 | 965 | 35 |
| M | 545 | 394 | 74.5 | 73 | 150 | 545 | 540 | 798 | 58 | 582 | 392 | 966 | 35 |
| L | 564 | 399 | 74.5 | 73 | 170 | 555 | 560 | 817 | 58 | 592 | 392 | 977 | 35 |
| XL | 581 | 403 | 73.5 | 73 | 188 | 575 | 580 | 835 | 58 | 602 | 395 | 990 | 35 |
All measurements in millimetres unless marked (°) for angles.
