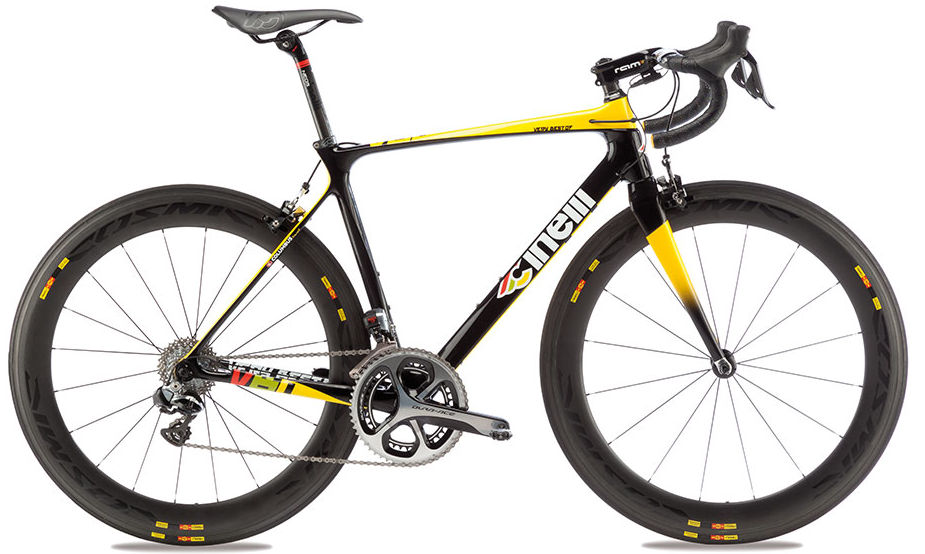

2016 Cinelli Very Best Of geometry
Full frame geometry for the 2016 Cinelli Very Best Of, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 519 | 369 | 74 | 71 | 119 | 518 | 460 | 732 | 72 | 576 | 406 | 971 | 45 |
| S | 538 | 376 | 74 | 72 | 135 | 530 | 480 | 751 | 72 | 579 | 406 | 974 | 45 |
| M | 554 | 380 | 73.5 | 73 | 150 | 544 | 510 | 777 | 70 | 579 | 408 | 977 | 45 |
| L | 578 | 390 | 73.5 | 73 | 175 | 561 | 540 | 801 | 70 | 596 | 408 | 994 | 45 |
| XL | 594 | 390 | 73 | 73 | 195 | 572 | 570 | 826 | 67 | 602 | 408 | 1000 | 45 |
All measurements in millimetres unless marked (°) for angles.
