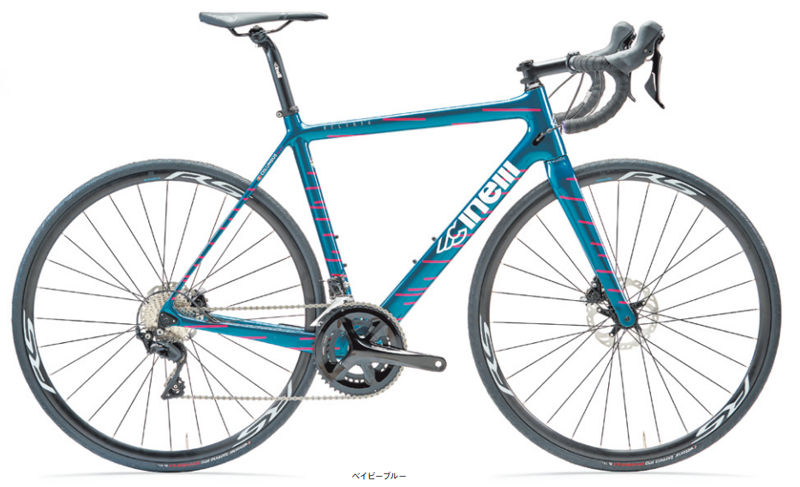

2022 Cinelli Veltrix geometry
Full frame geometry for the 2022 Cinelli Veltrix, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 515 | 364 | 75 | 71 | 115 | 500 | 500 | 744 | 70 | 566 | 415 | 971 | 43 |
| S | 534 | 373 | 74.5 | 71.5 | 135 | 520 | 520 | 764 | 70 | 577 | 415 | 983 | 43 |
| M | 551 | 382 | 73.5 | 73 | 155 | 540 | 540 | 784 | 70 | 578 | 415 | 975 | 43 |
| L | 584 | 395 | 73.5 | 73 | 180 | 567 | 568 | 804 | 70 | 600 | 415 | 1005 | 43 |
| XL | 598 | 405 | 73.5 | 73.5 | 200 | 583 | 584 | 821 | 70 | 614 | 415 | 1019 | 43 |
All measurements in millimetres unless marked (°) for angles.
