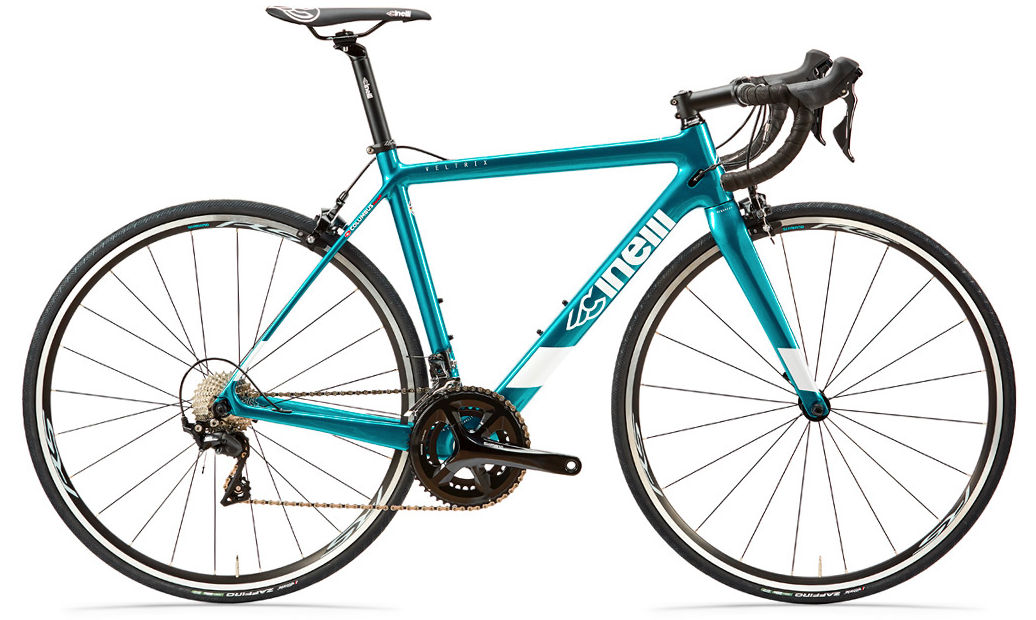

2019 Cinelli Veltrix Caliper geometry
Full frame geometry for the 2019 Cinelli Veltrix Caliper, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 510 | 362 | 75 | 71 | 115 | 500 | 500 | 744 | 68 | 575 | 409 | 975 | 43 | 71 |
| S | 532 | 372 | 74.5 | 71.5 | 135 | 520 | 520 | 764 | 68 | 587 | 409 | 986 | 43 | 68 |
| M | 551 | 382 | 74 | 73 | 155 | 540 | 540 | 784 | 68 | 579 | 409 | 978 | 43 | 59 |
| L | 583 | 394 | 73.5 | 73 | 180 | 565 | 567 | 804 | 68 | 601 | 409 | 1000 | 43 | 59 |
| XL | 601 | 406 | 73 | 73 | 200 | 583 | 585 | 821 | 68 | 615 | 409 | 1015 | 43 | 59 |
All measurements in millimetres unless marked (°) for angles.
