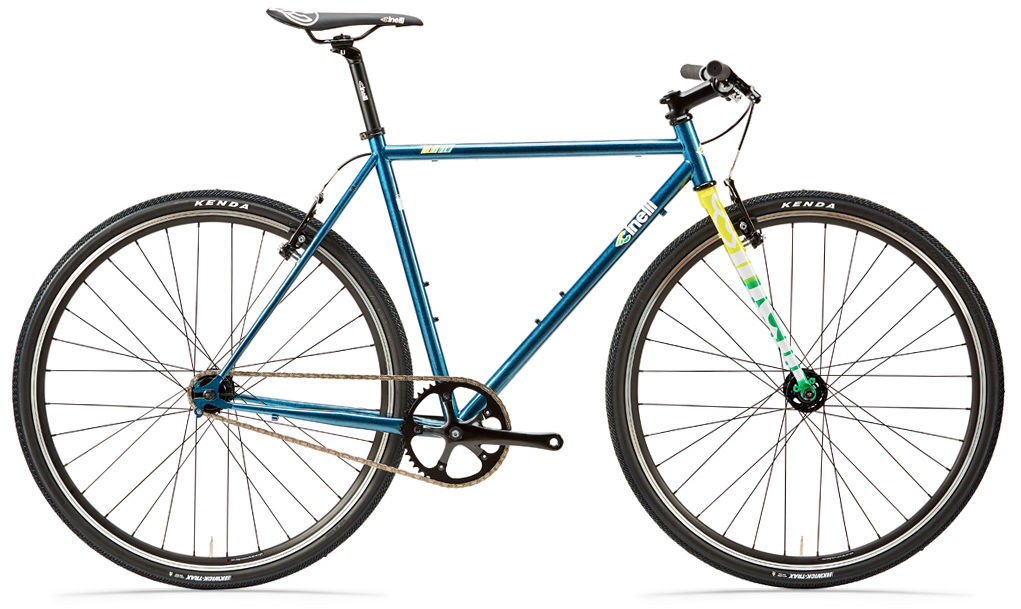

2019 Cinelli Tutto Plus geometry
Full frame geometry for the 2019 Cinelli Tutto Plus, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 515 | 378 | 75.5 | 71.5 | 90 | 510 | 520 | 787 | 60 | 579 | 425 | 987 | 45 | 72 |
| M | 528 | 398 | 75.5 | 72.5 | 100 | 540 | 540 | 804 | 60 | 595 | 425 | 1003 | 45 | 65 |
| L | 536 | 410 | 74.5 | 72 | 110 | 560 | 560 | 820 | 60 | 616 | 425 | 1024 | 45 | 68 |
| XL | 560 | 424 | 74 | 73.5 | 130 | 585 | 590 | 848 | 60 | 622 | 425 | 1030 | 45 | 59 |
All measurements in millimetres unless marked (°) for angles.
