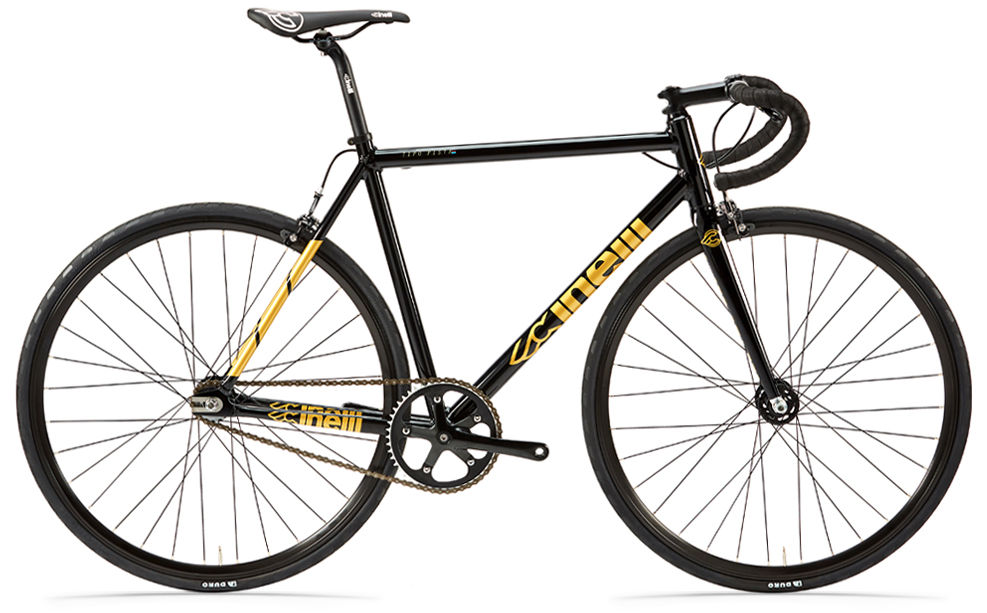

2019 Cinelli Tipo Pista geometry
Full frame geometry for the 2019 Cinelli Tipo Pista, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 500 | 383 | 75.5 | 71.7 | 113 | 513 | 470 | 738 | 55 | 570 | 389 | 953 | 35 | 74 |
| S | 524 | 394 | 75 | 72.5 | 135 | 535 | 500 | 764 | 55 | 582 | 390 | 965 | 35 | 69 |
| M | 542 | 400 | 74.4 | 73.5 | 150 | 550 | 530 | 788 | 55 | 583 | 392 | 969 | 35 | 63 |
| L | 567 | 407 | 74 | 74 | 175 | 570 | 560 | 815 | 55 | 593 | 393 | 980 | 35 | 60 |
All measurements in millimetres unless marked (°) for angles.
