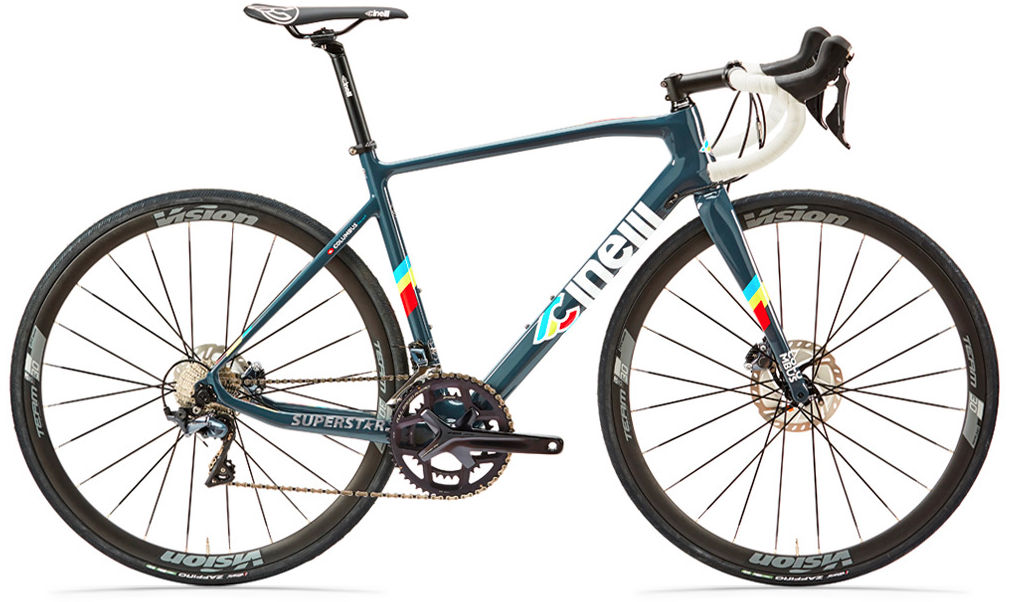

2019 Cinelli Superstar Disc geometry
Full frame geometry for the 2019 Cinelli Superstar Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 509 | 373 | 75 | 71 | 110 | 515 | 460 | 717 | 70 | 577 | 415 | 982 | 45 | 69 |
| S | 522 | 383 | 74 | 72 | 120 | 533 | 480 | 734 | 70 | 581 | 415 | 987 | 45 | 63 |
| M | 548 | 387 | 73.5 | 72.5 | 145 | 550 | 510 | 763 | 70 | 590 | 415 | 995 | 45 | 60 |
| L | 564 | 393 | 73 | 73 | 160 | 566 | 540 | 787 | 70 | 595 | 415 | 1001 | 45 | 57 |
| XL | 590 | 399 | 72.5 | 73.5 | 185 | 585 | 570 | 815 | 70 | 604 | 415 | 1009 | 45 | 53 |
All measurements in millimetres unless marked (°) for angles.
