2018 Cinelli Supercorsa geometry

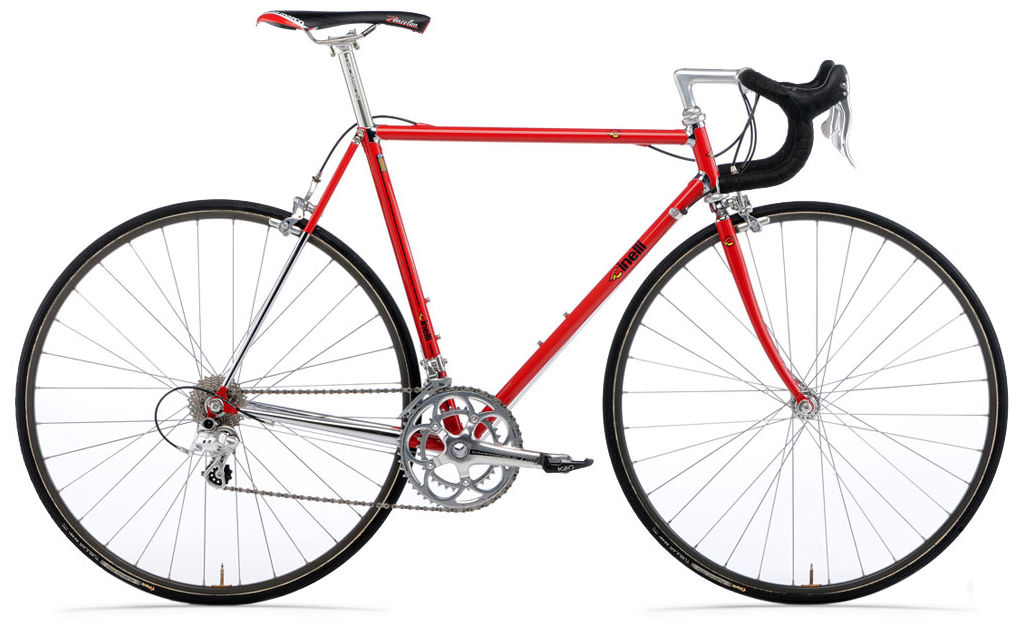

Name: 2018 Cinelli Supercorsa
Brand: Cinelli

Full frame geometry for the 2018 Cinelli Supercorsa, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Top tube (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)
48	486	374	72	74.5	510	66	557	401	948	50
49	495	377	72	74.5	515	69	571	402	963	50
50	505	379	72.5	74.5	520	70	573	402	964	50
51	513	377	72.5	74	525	73	573	402	964	50
52	523	384	72.5	74	535	73	583	403	975	50
53	533	387	73	74	540	73	579	405	972	45
54	541	383	73	73.5	545	73	579	405	973	45
55	550	387	73	73.5	550	73	584	405	978	45
56	560	394	73	73.5	560	73	594	405	988	45
57	570	396	73	73.5	565	73	599	406	994	45
58	578	393	73	73	570	73	600	407	995	45
59	587	396	73	73	575	73	604	408	1001	45
60	597	398	73	73	580	73	609	409	1007	45
61	606	395	73	73	580	73	609	409	1007	45
62	616	402	73	73	590	73	619	409	1017	45
63	626	399	73	73	590	73	619	410	1018	45
64	635	401	73	73	595	73	620	410	1019	45

All measurements in millimetres unless marked (°) for angles.
