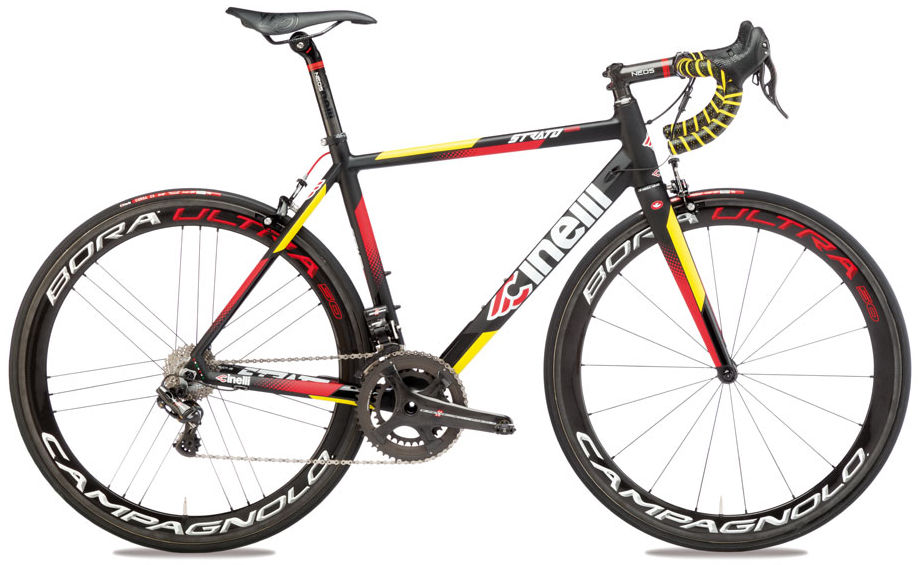

2016 Cinelli Strato Faster MK I geometry
Full frame geometry for the 2016 Cinelli Strato Faster MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 518 | 389 | 76 | 72.5 | 122 | 518 | 460 | 729 | 63 | 574 | 403 | 969 | 45 |
| S | 526 | 381 | 75 | 73 | 128 | 522 | 480 | 736 | 63 | 571 | 405 | 968 | 45 |
| M | 548 | 393 | 74.5 | 74 | 150 | 545 | 510 | 764 | 61 | 579 | 405 | 976 | 45 |
| L | 574 | 391 | 74 | 74.5 | 175 | 555 | 540 | 791 | 61 | 582 | 408 | 983 | 45 |
| XL | 600 | 398 | 73.5 | 74.5 | 205 | 576 | 570 | 821 | 58 | 599 | 408 | 999 | 45 |
All measurements in millimetres unless marked (°) for angles.
