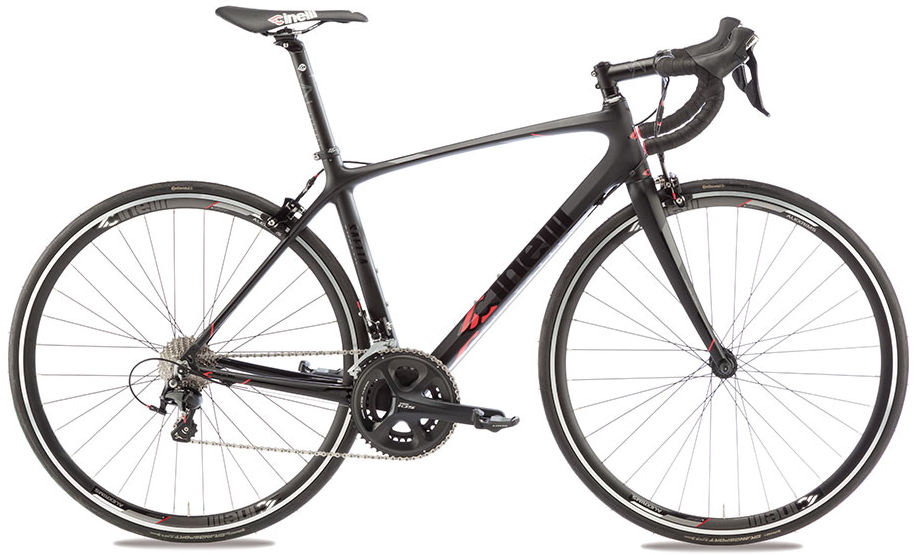

2016 Cinelli Saetta Radical Plus geometry
Full frame geometry for the 2016 Cinelli Saetta Radical Plus, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 521 | 367 | 74.5 | 71 | 120 | 512 | 430 | 716 | 73 | 572 | 404 | 965 | 45 |
| S | 531 | 373 | 74 | 72 | 130 | 525 | 440 | 739 | 70 | 573 | 406 | 969 | 45 |
| M | 545 | 384 | 73.5 | 72.5 | 145 | 545 | 480 | 769 | 68 | 584 | 406 | 981 | 45 |
| L | 566 | 377 | 73 | 73 | 165 | 550 | 520 | 801 | 68 | 586 | 408 | 984 | 45 |
| XL | 592 | 388 | 72.5 | 73.5 | 190 | 575 | 560 | 813 | 68 | 595 | 408 | 994 | 45 |
All measurements in millimetres unless marked (°) for angles.
