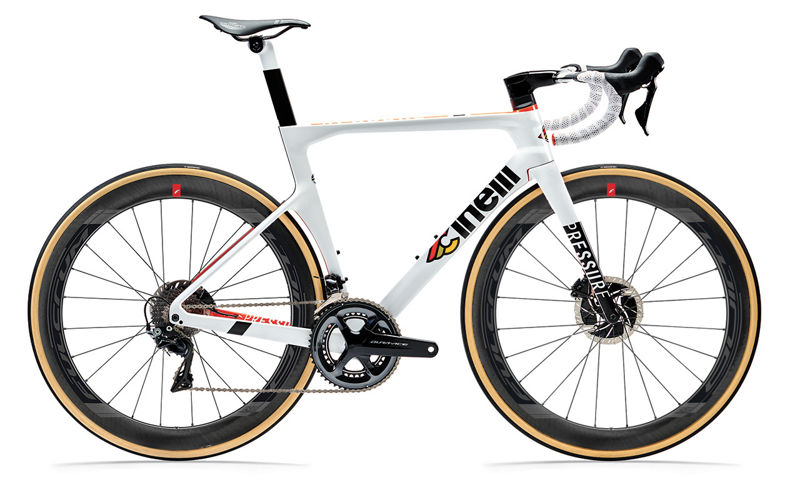

2022 Cinelli Pressure geometry
Full frame geometry for the 2022 Cinelli Pressure, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 512 | 366 | 73.5 | 71 | 110 | 518 | 460 | 68 | 571 | 410 | 971 | 45 |
| S | 528 | 374 | 73.5 | 71.5 | 125 | 530 | 490 | 68 | 579 | 410 | 979 | 45 |
| M | 539 | 385 | 73.5 | 72 | 135 | 545 | 520 | 68 | 590 | 410 | 990 | 45 |
| L | 560 | 394 | 73.5 | 72.5 | 155 | 560 | 550 | 68 | 600 | 410 | 1001 | 45 |
| XL | 581 | 403 | 73.5 | 73 | 175 | 575 | 580 | 68 | 611 | 410 | 1011 | 45 |
All measurements in millimetres unless marked (°) for angles.
