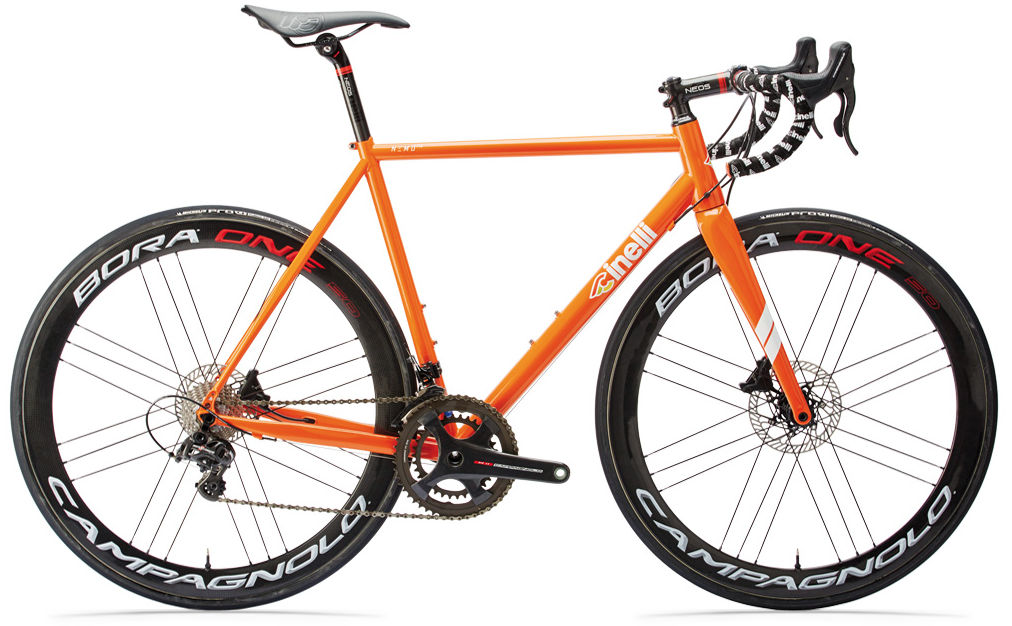

2018 Cinelli Nemo Tig Disc geometry
Full frame geometry for the 2018 Cinelli Nemo Tig Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 510 | 369 | 74.5 | 71 | 110 | 510 | 480 | 735 | 70 | 572 | 410 | 967 | 45 |
| S | 520 | 371 | 74 | 71.5 | 120 | 520 | 510 | 760 | 70 | 573 | 410 | 968 | 45 |
| M | 547 | 373 | 73.5 | 72.5 | 145 | 535 | 540 | 782 | 70 | 575 | 410 | 969 | 45 |
| L | 563 | 383 | 73.5 | 73 | 160 | 550 | 560 | 799 | 70 | 585 | 410 | 980 | 45 |
| XL | 587 | 396 | 73 | 73 | 185 | 575 | 590 | 823 | 70 | 605 | 410 | 1003 | 45 |
| XXL | 613 | 397 | 72.5 | 73.5 | 210 | 590 | 610 | 845 | 70 | 609 | 410 | 1009 | 45 |
All measurements in millimetres unless marked (°) for angles.
