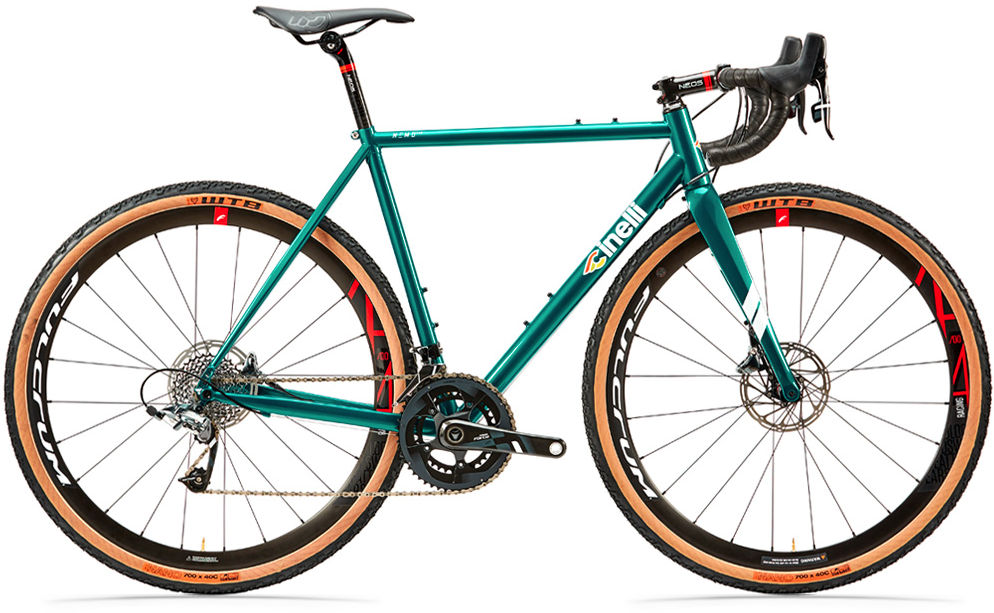

2019 Cinelli Nemo Gravel geometry
Full frame geometry for the 2019 Cinelli Nemo Gravel, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 508 | 373 | 74.5 | 70.5 | 100 | 514 | 480 | 68 | 582 | 430 | 1003 | 47 | 74 |
| S | 522 | 380 | 74.5 | 70.5 | 115 | 525 | 510 | 68 | 594 | 430 | 1015 | 47 | 74 |
| M | 550 | 382 | 74 | 71.5 | 140 | 540 | 540 | 68 | 597 | 430 | 1018 | 47 | 68 |
| L | 563 | 387 | 73.5 | 72.5 | 150 | 554 | 560 | 68 | 596 | 430 | 1017 | 47 | 61 |
| XL | 587 | 400 | 73 | 72.5 | 175 | 579 | 590 | 68 | 616 | 430 | 1036 | 47 | 61 |
| XXL | 613 | 400 | 72.5 | 73 | 200 | 594 | 610 | 68 | 620 | 430 | 1041 | 47 | 58 |
All measurements in millimetres unless marked (°) for angles.
