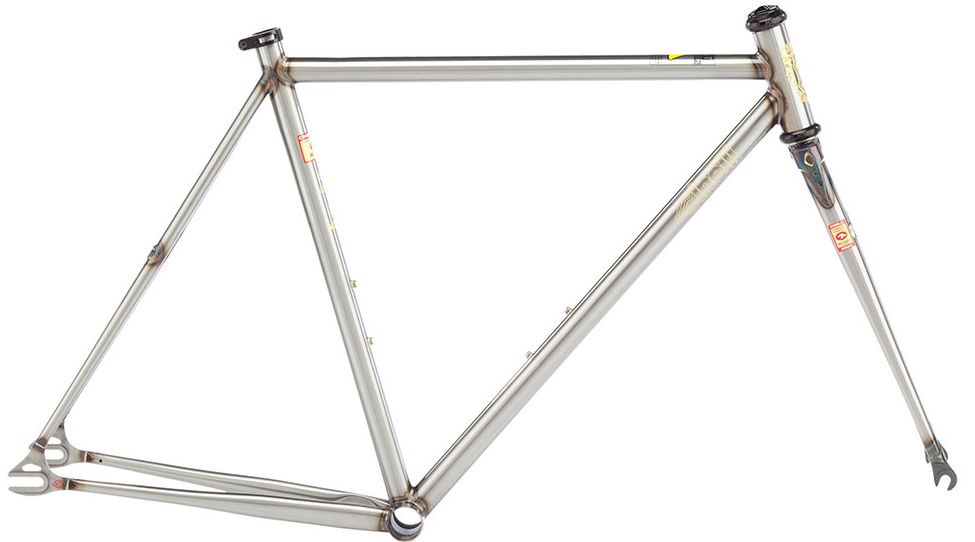

2016 Cinelli Mash Work geometry
Full frame geometry for the 2016 Cinelli Mash Work, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 502 | 370 | 75.5 | 72.5 | 100 | 500 | 520 | 780 | 54 | 552 | 390 | 936 | 38 |
| M | 514 | 392 | 75 | 73.5 | 110 | 530 | 540 | 893 | 54 | 570 | 390 | 954 | 38 |
| L | 526 | 404 | 74.5 | 74 | 120 | 550 | 560 | 811 | 54 | 582 | 390 | 965 | 38 |
| XL | 542 | 415 | 74 | 74.5 | 135 | 570 | 580 | 829 | 54 | 592 | 390 | 976 | 38 |
| XXL | 558 | 440 | 74 | 75 | 150 | 600 | 600 | 849 | 54 | 617 | 390 | 1001 | 38 |
All measurements in millimetres unless marked (°) for angles.
