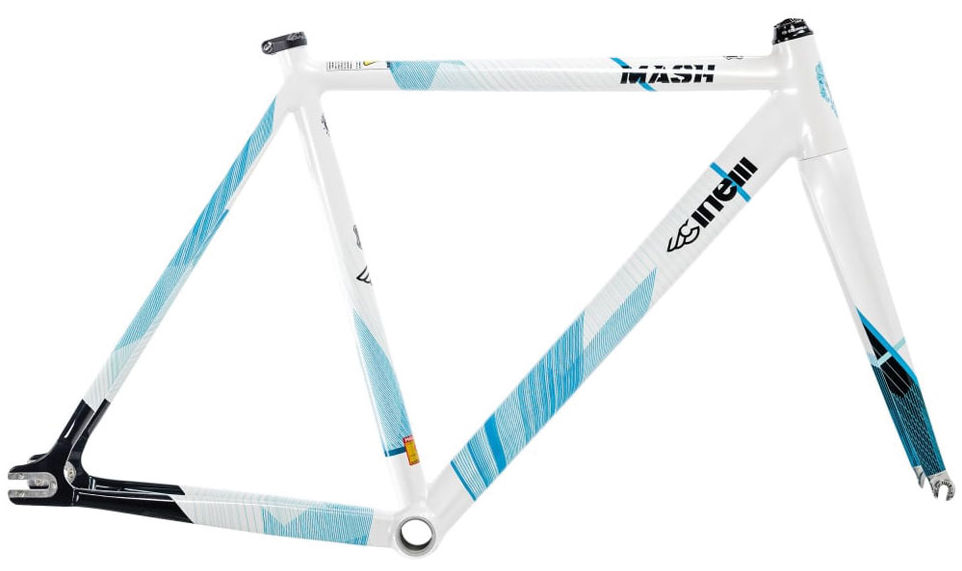

2016 Cinelli Mash Parallax geometry
Full frame geometry for the 2016 Cinelli Mash Parallax, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 493 | 372 | 76 | 72.5 | 100 | 495 | 500 | 756 | 54 | 540 | 388 | 921 | 28 |
| S | 506 | 384 | 75.5 | 73.5 | 110 | 515 | 520 | 771 | 54 | 549 | 388 | 930 | 28 |
| M | 523 | 395 | 75 | 74.5 | 125 | 535 | 540 | 789 | 54 | 557 | 388 | 938 | 28 |
| L | 544 | 404 | 74.5 | 75 | 145 | 555 | 560 | 806 | 54 | 568 | 389 | 950 | 28 |
| XL | 558 | 415 | 74 | 75 | 160 | 575 | 580 | 825 | 54 | 587 | 389 | 965 | 28 |
All measurements in millimetres unless marked (°) for angles.
