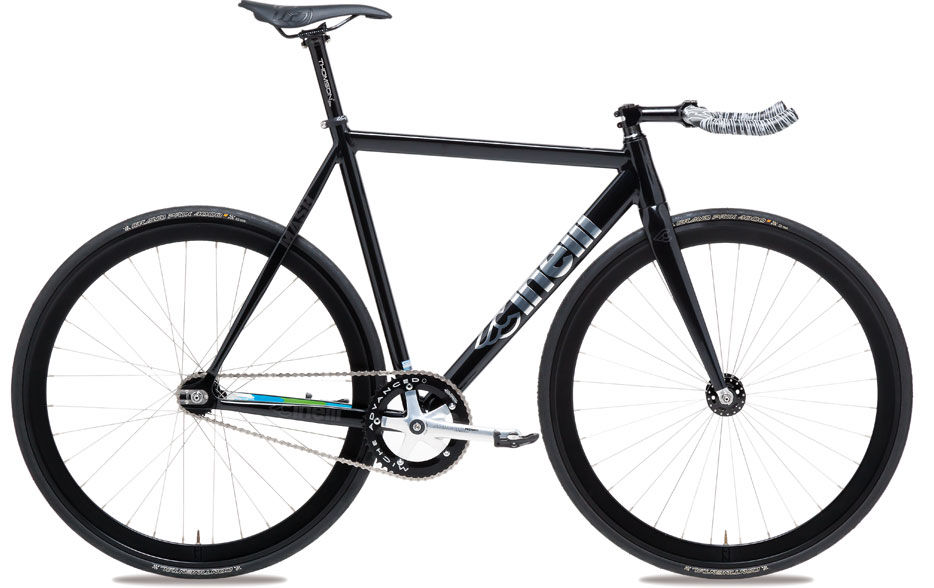

2016 Cinelli Mash Histogram geometry
Full frame geometry for the 2016 Cinelli Mash Histogram, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 491 | 380 | 75.8 | 73 | 95 | 505 | 520 | 758 | 58 | 551 | 385 | 929 | 35 |
| S | 506 | 384 | 75.3 | 74.5 | 110 | 517 | 540 | 776 | 54 | 548 | 387 | 928 | 35 |
| M | 517 | 392 | 75 | 75 | 120 | 530 | 570 | 798 | 54 | 554 | 388 | 936 | 35 |
| L | 528 | 403 | 74.5 | 75 | 135 | 550 | 590 | 816 | 51 | 570 | 388 | 952 | 35 |
| XL | 555 | 416 | 74 | 75 | 163 | 575 | 620 | 843 | 51 | 589 | 388 | 972 | 35 |
| XXL | 572 | 431 | 74 | 75 | 180 | 595 | 640 | 861 | 51 | 609 | 388 | 991 | 35 |
All measurements in millimetres unless marked (°) for angles.
