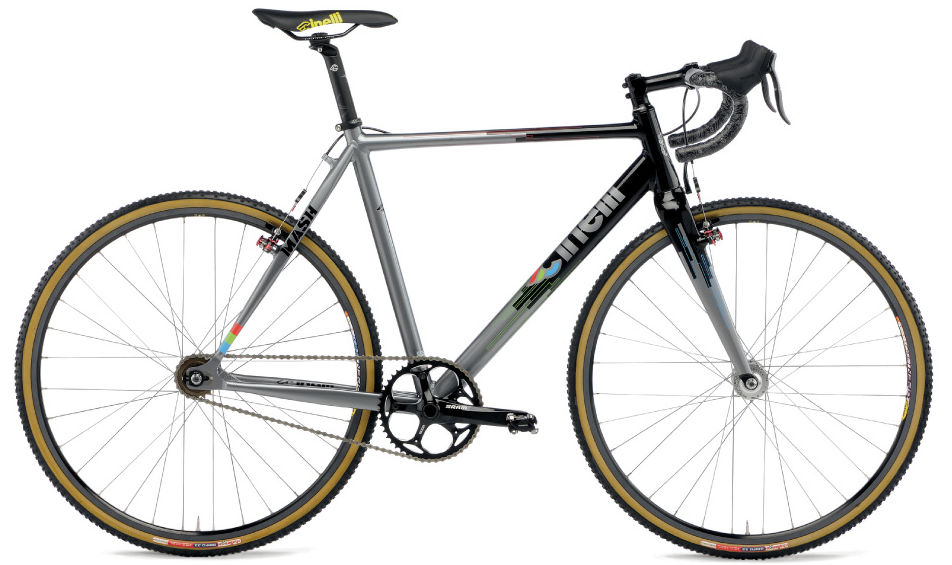

2016 Cinelli Mash CXSS geometry
Full frame geometry for the 2016 Cinelli Mash CXSS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 527 | 374 | 74.5 | 71 | 120 | 520 | 510 | 774 | 58 | 586 | 420 | 999 | 45 |
| M | 550 | 382 | 74 | 72 | 140 | 540 | 535 | 800 | 58 | 592 | 420 | 1011 | 45 |
| L | 566 | 392 | 73.5 | 72.5 | 155 | 560 | 560 | 816 | 58 | 602 | 420 | 1016 | 45 |
| XL | 596 | 398 | 73 | 73 | 185 | 580 | 590 | 847 | 58 | 612 | 420 | 1025 | 45 |
| XXL | 620 | 410 | 73 | 73 | 210 | 600 | 610 | 870 | 58 | 632 | 420 | 1045 | 45 |
All measurements in millimetres unless marked (°) for angles.
