2016 Cinelli · UD

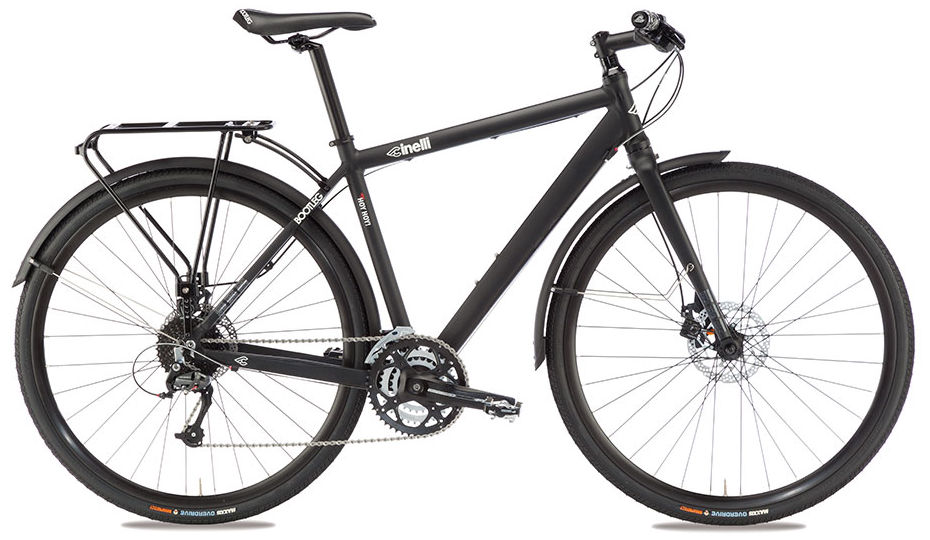

2016 Cinelli Hoy Hoy! geometry
Full frame geometry for the 2016 Cinelli Hoy Hoy!, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 569 | 374 | 74.5 | 72 | 130 | 532 | 470 | 746 | 70 | 587 | 445 | 1022 | 45 |
| M | 587 | 384 | 74 | 73 | 145 | 552 | 490 | 775 | 70 | 593 | 445 | 1029 | 45 |
| L | 604 | 385 | 73 | 73 | 165 | 570 | 520 | 798 | 68 | 600 | 445 | 1037 | 45 |
| XL | 619 | 390 | 72.5 | 73 | 180 | 585 | 540 | 814 | 68 | 609 | 445 | 1046 | 45 |
All measurements in millimetres unless marked (°) for angles.
