2019 Cinelli · A

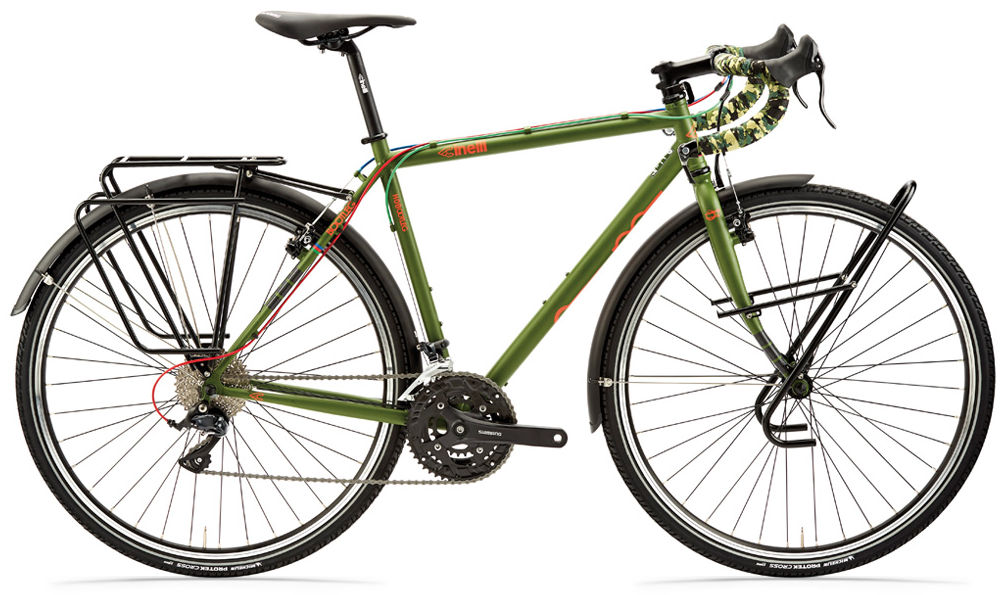

2019 Cinelli Hobootleg MKII geometry
Full frame geometry for the 2019 Cinelli Hobootleg MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS (26) | 509 | 367 | 74.5 | 70 | 110 | 510 | 460 | 731 | 50 | 586 | 420 | 1001 | 45 | 81 |
| S | 549 | 362 | 74 | 70 | 105 | 520 | 490 | 765 | 70 | 594 | 440 | 1025 | 50 | 75 |
| M | 572 | 370 | 73.5 | 71 | 125 | 540 | 530 | 795 | 70 | 600 | 440 | 1031 | 50 | 69 |
| L | 593 | 379 | 73 | 71.5 | 145 | 560 | 560 | 819 | 70 | 610 | 440 | 1041 | 50 | 65 |
| XL | 612 | 387 | 72.5 | 71.5 | 165 | 580 | 590 | 842 | 70 | 625 | 440 | 1055 | 50 | 65 |
| XXL | 643 | 391 | 72 | 72 | 195 | 600 | 610 | 866 | 70 | 634 | 440 | 1064 | 50 | 62 |
All measurements in millimetres unless marked (°) for angles.
