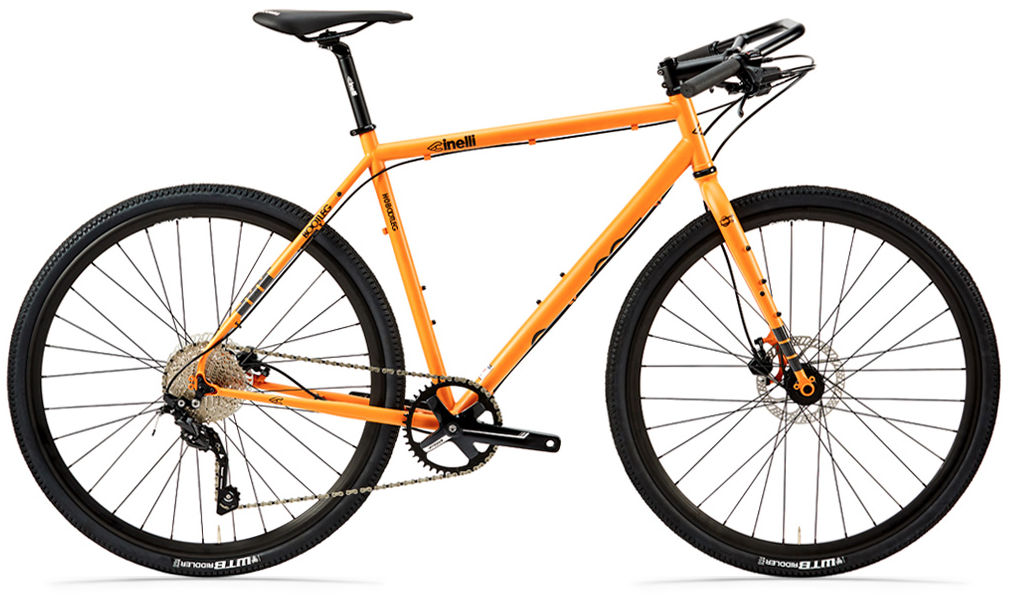

2019 Cinelli Hobootleg Interrail geometry
Full frame geometry for the 2019 Cinelli Hobootleg Interrail, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 567 | 387 | 74 | 71 | 120 | 550 | 510 | 778 | 70 | 615 | 440 | 1045 | 50 | 69 |
| M | 586 | 391 | 73 | 71 | 140 | 570 | 545 | 805 | 70 | 625 | 440 | 1055 | 50 | 69 |
| L | 612 | 396 | 72.5 | 71.5 | 165 | 590 | 570 | 830 | 70 | 635 | 440 | 1065 | 50 | 65 |
| XL | 633 | 404 | 72 | 72 | 185 | 610 | 600 | 855 | 70 | 644 | 440 | 1074 | 50 | 62 |
All measurements in millimetres unless marked (°) for angles.
