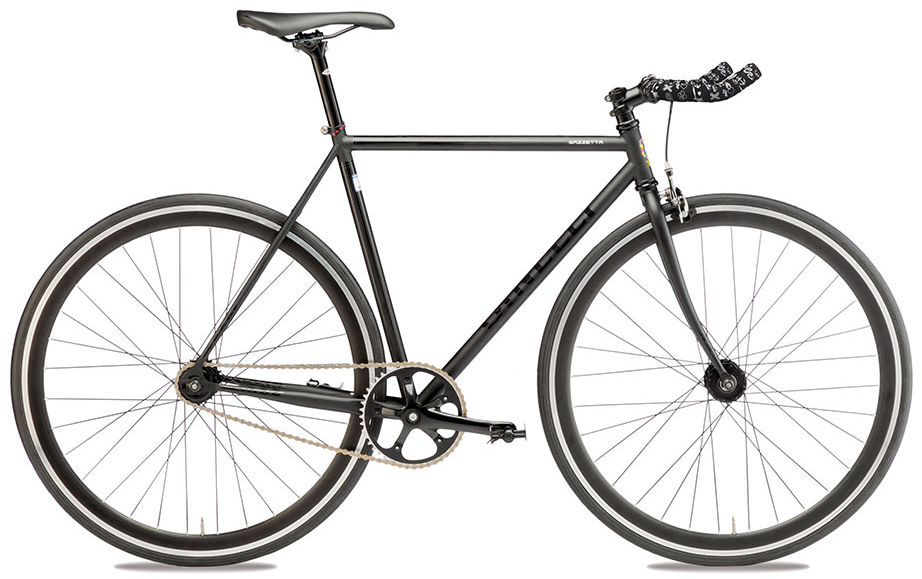

2016 Cinelli Gazzetta MK I geometry
Full frame geometry for the 2016 Cinelli Gazzetta MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 480 | 386 | 75.5 | 72 | 85 | 510 | 510 | 755 | 58 | 559 | 385 | 936 | 32 |
| XS | 500 | 386 | 75 | 73 | 102 | 520 | 530 | 773 | 58 | 557 | 385 | 935 | 32 |
| S | 520 | 396 | 75 | 74 | 120 | 535 | 550 | 792 | 58 | 564 | 385 | 942 | 32 |
| M | 544 | 399 | 75 | 74 | 145 | 545 | 570 | 812 | 58 | 574 | 385 | 952 | 32 |
| L | 560 | 400 | 74.5 | 74.5 | 160 | 555 | 590 | 830 | 58 | 575 | 385 | 953 | 32 |
| XL | 579 | 404 | 74.5 | 74.5 | 180 | 565 | 610 | 849 | 58 | 585 | 385 | 963 | 32 |
All measurements in millimetres unless marked (°) for angles.
