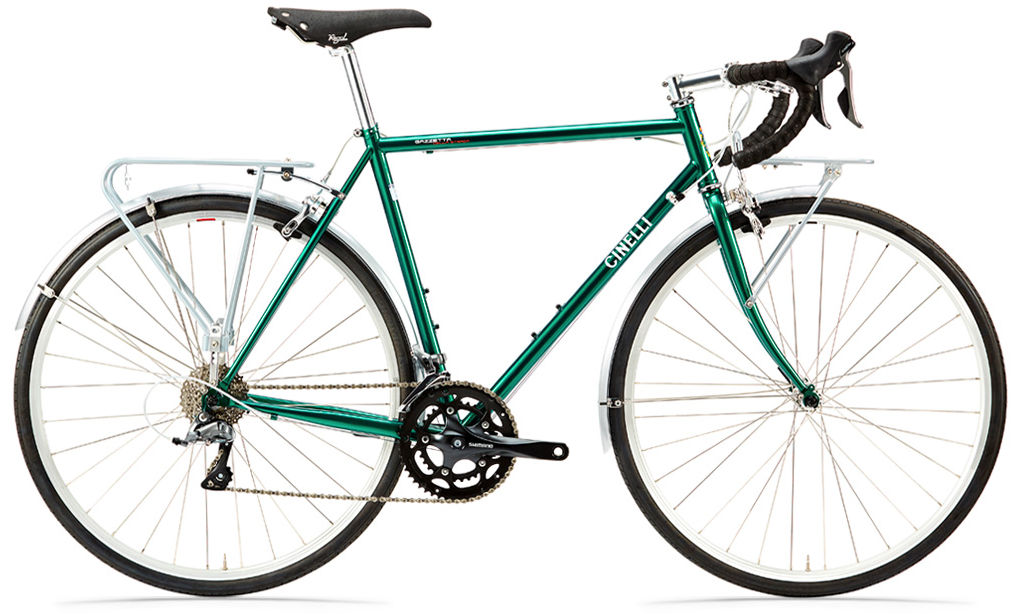

2018 Cinelli Gazzetta della strada MKII geometry
Full frame geometry for the 2018 Cinelli Gazzetta della strada MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 528 | 371 | 74.5 | 70.5 | 100 | 520 | 500 | 759 | 73 | 590 | 420 | 999 | 50 | 68 |
| S | 549 | 376 | 74 | 71 | 120 | 535 | 530 | 782 | 73 | 597 | 420 | 1006 | 50 | 65 |
| M | 572 | 385 | 74 | 72 | 140 | 550 | 550 | 802 | 73 | 604 | 420 | 1013 | 50 | 59 |
| L | 592 | 389 | 73.5 | 72.5 | 160 | 565 | 570 | 823 | 73 | 609 | 420 | 1019 | 50 | 56 |
| XL | 626 | 399 | 73.5 | 72.5 | 195 | 585 | 590 | 846 | 73 | 630 | 420 | 1039 | 50 | 56 |
All measurements in millimetres unless marked (°) for angles.
