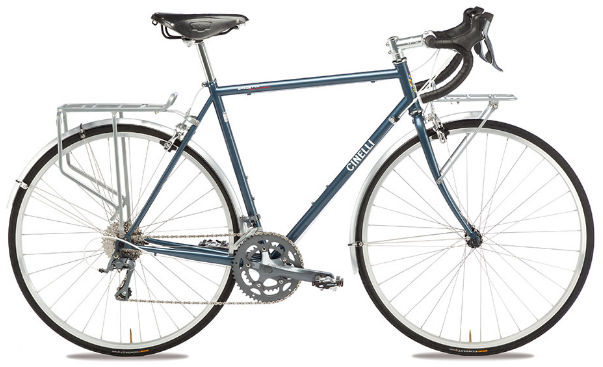

2016 Cinelli Gazzetta della strada MK I geometry
Full frame geometry for the 2016 Cinelli Gazzetta della strada MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 523 | 375 | 74.5 | 72 | 100 | 520 | 500 | 761 | 73 | 577 | 420 | 986 | 50 |
| S | 543 | 379 | 74 | 72.5 | 120 | 535 | 530 | 784 | 73 | 584 | 420 | 993 | 50 |
| M | 564 | 388 | 74 | 73 | 140 | 550 | 550 | 804 | 73 | 590 | 420 | 998 | 50 |
| L | 583 | 387 | 73 | 73 | 160 | 565 | 570 | 823 | 73 | 605 | 420 | 1014 | 50 |
| XL | 617 | 402 | 73.5 | 73 | 195 | 585 | 590 | 847 | 73 | 625 | 420 | 1034 | 50 |
All measurements in millimetres unless marked (°) for angles.
