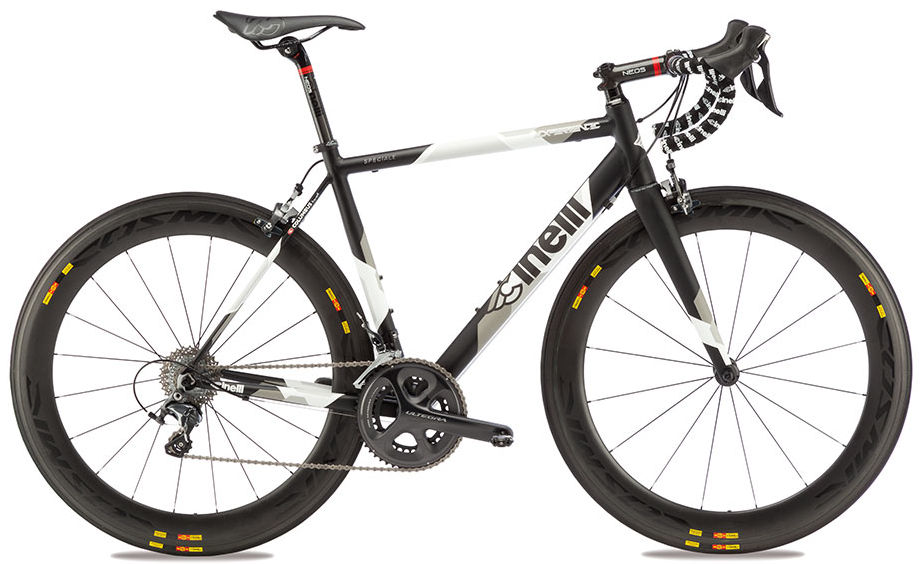

2016 Cinelli Experience Speciale MK I geometry
Full frame geometry for the 2016 Cinelli Experience Speciale MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 524 | 365 | 74.5 | 71 | 123 | 510 | 460 | 726 | 73 | 569 | 407 | 964 | 45 |
| S | 529 | 375 | 74 | 72 | 125 | 527 | 480 | 735 | 73 | 573 | 407 | 969 | 45 |
| M | 555 | 381 | 73.5 | 73 | 150 | 545 | 510 | 765 | 71 | 581 | 407 | 977 | 45 |
| L | 578 | 383 | 73 | 73.5 | 173 | 560 | 540 | 792 | 71 | 585 | 407 | 981 | 45 |
| XL | 606 | 389 | 72.5 | 73.5 | 205 | 580 | 570 | 823 | 68 | 601 | 410 | 1001 | 45 |
All measurements in millimetres unless marked (°) for angles.
