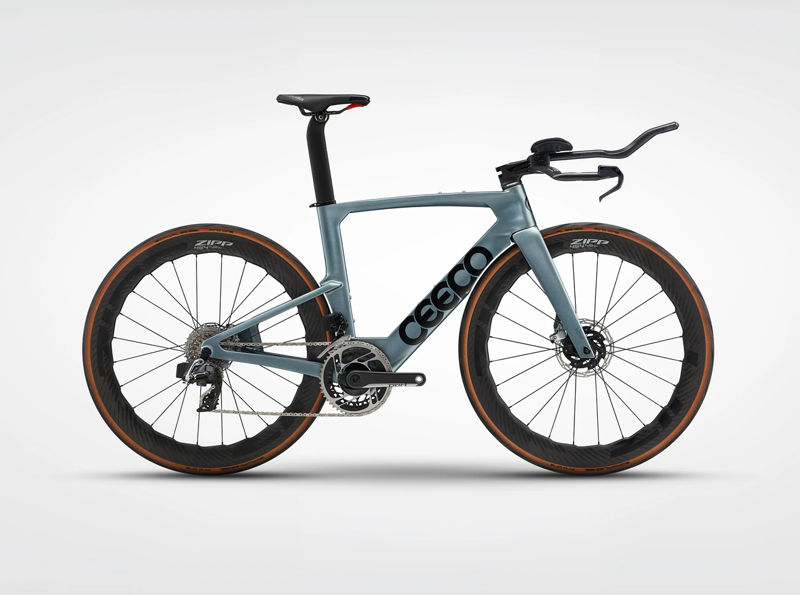

2023 Ceepo Viper geometry
Full frame geometry for the 2023 Ceepo Viper, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 485 | 405 | 81.5 | 71 | 90 | 487 | 430 | 721.7 | 596 | 400 | 985 |
| M | 510 | 420 | 81.5 | 71 | 116 | 504 | 470 | 754.3 | 620 | 400 | 1008 |
| L | 540 | 435 | 80.5 | 71.5 | 146 | 535 | 530 | 803.7 | 640 | 400 | 1029 |
All measurements in millimetres unless marked (°) for angles.
