2026 Ceepo · RD

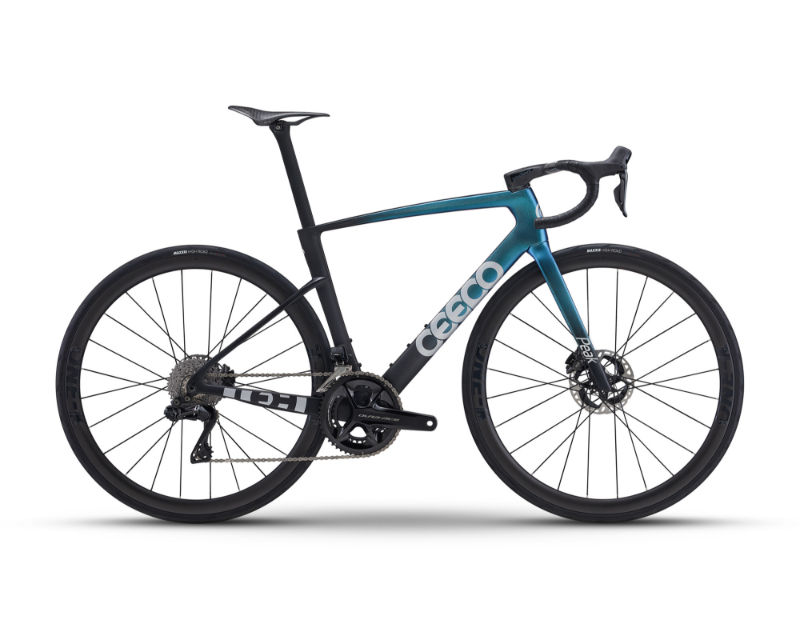

2026 Ceepo Peak geometry
Full frame geometry for the 2026 Ceepo Peak, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 500 | 375 | 76 | 71.5 | 97 | 500 | 430 | 70 | 573 | 404 | 966 | 47 | 68 |
| S | 520 | 380 | 75 | 72 | 117 | 519 | 450 | 70 | 580 | 407 | 977 | 47 | 64 |
| M | 540 | 390 | 74.5 | 72.5 | 136 | 540 | 470 | 70 | 591 | 407 | 988 | 47 | 61 |
| L | 560 | 400 | 73.5 | 73 | 155 | 566 | 495 | 70 | 603 | 410 | 1003 | 47 | 57 |
| XL | 585 | 410 | 73 | 73 | 181 | 589 | 530 | 70 | 621 | 412 | 1022 | 47 | 57 |
All measurements in millimetres unless marked (°) for angles.
