2025 Ceepo · G

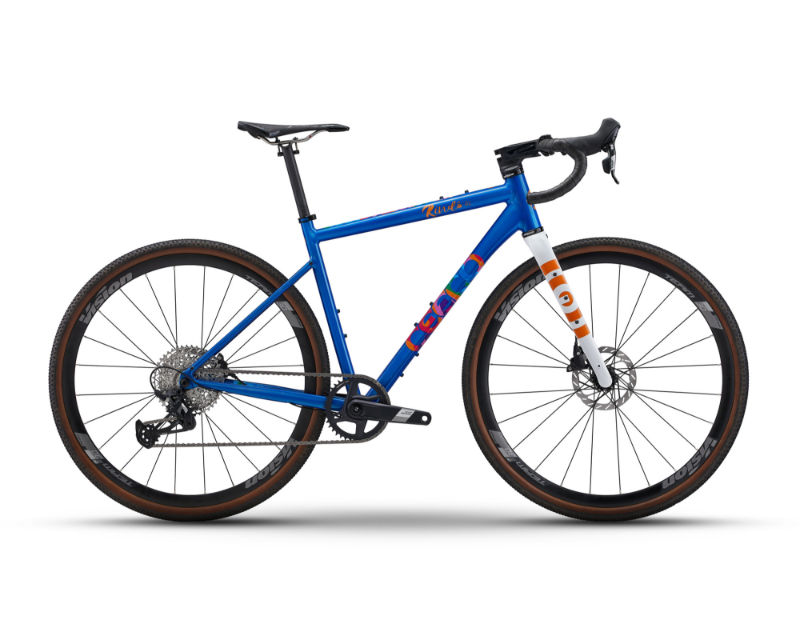

2025 Ceepo Rindo AL geometry
Full frame geometry for the 2025 Ceepo Rindo AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 524 | 370 | 76 | 71 | 89 | 501 | 430 | 716 | 70 | 583.4 | 425 | 998 | 50 |
| S | 550 | 379 | 75 | 71 | 116 | 526 | 460 | 740 | 70 | 601.1 | 425 | 1016 | 50 |
| M | 574 | 388 | 74.5 | 72 | 138 | 547 | 490 | 767 | 70 | 608.4 | 425 | 1024 | 50 |
| L | 599 | 397 | 73.5 | 72 | 164 | 574.4 | 520 | 791 | 70 | 625.3 | 425 | 1046 | 50 |
| XL | 625 | 405 | 73 | 72 | 191 | 596 | 560 | 836 | 70 | 641.6 | 425 | 1062 | 50 |
All measurements in millimetres unless marked (°) for angles.
