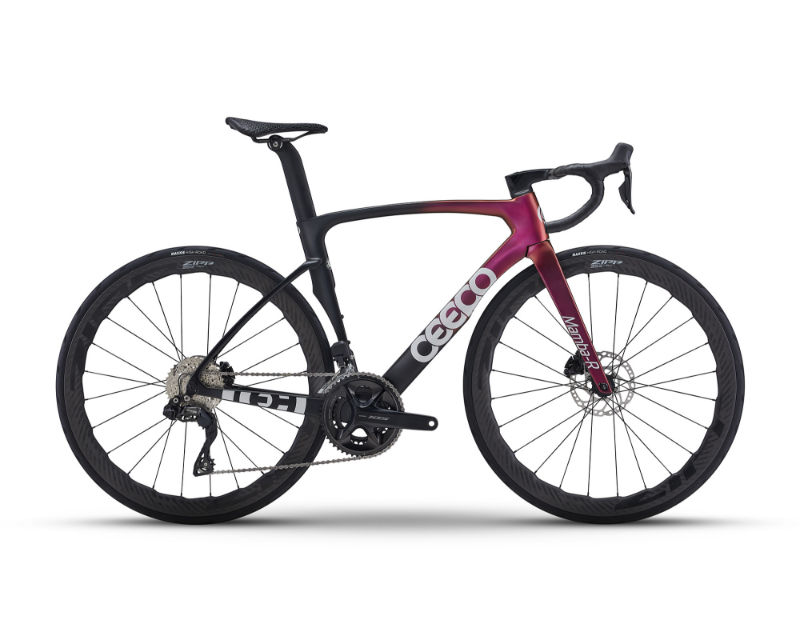

2026 Ceepo Mamba-R geometry
Full frame geometry for the 2026 Ceepo Mamba-R, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 493 | 378 | 76 | 71.5 | 85 | 500 | 430 | 708 | 70 | 567.9 | 408 | 965.4 | 43 |
| S | 502 | 385 | 75 | 71.5 | 95 | 520 | 460 | 738 | 70 | 579.7 | 408 | 977.2 | 43 |
| M | 528 | 388 | 75.7 | 72 | 130 | 534.4 | 490 | 767 | 70 | 586.2 | 408 | 975.8 | 43 |
| L | 552 | 391 | 74.6 | 72 | 145 | 555 | 520 | 795 | 70 | 597.3 | 408 | 955 | 43 |
| XL | 582 | 402 | 74 | 72.5 | 175 | 580 | 550 | 826 | 70 | 612.6 | 408 | 1010.4 | 43 |
All measurements in millimetres unless marked (°) for angles.
