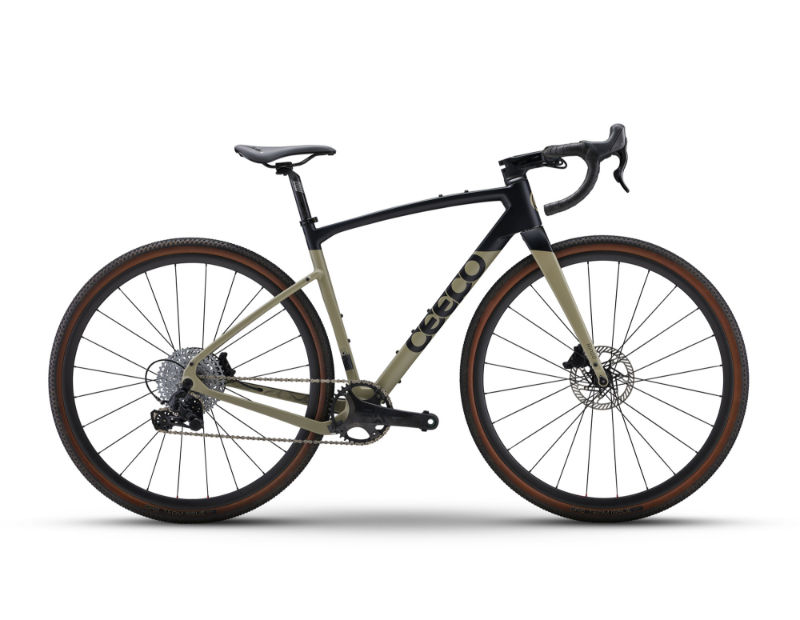

2025 Ceepo Rindo geometry
Full frame geometry for the 2025 Ceepo Rindo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 526.5 | 370 | 76 | 72 | 85 | 501 | 430 | 716 | 75 | 591 | 425 | 1004 | 65.8 |
| S | 535 | 375 | 75 | 72.5 | 92 | 518 | 460 | 740 | 75 | 594 | 425 | 1007 | 65.8 |
| M | 560 | 385 | 74.5 | 72.5 | 118 | 540 | 490 | 767 | 75 | 595 | 425 | 1009 | 50 |
| L | 590 | 395 | 73.5 | 72.5 | 150 | 570 | 520 | 791 | 75 | 614 | 425 | 1028 | 50 |
| XL | 625 | 405 | 73 | 72.5 | 186.5 | 596 | 560 | 836 | 75 | 635 | 425 | 1049 | 50 |
All measurements in millimetres unless marked (°) for angles.
