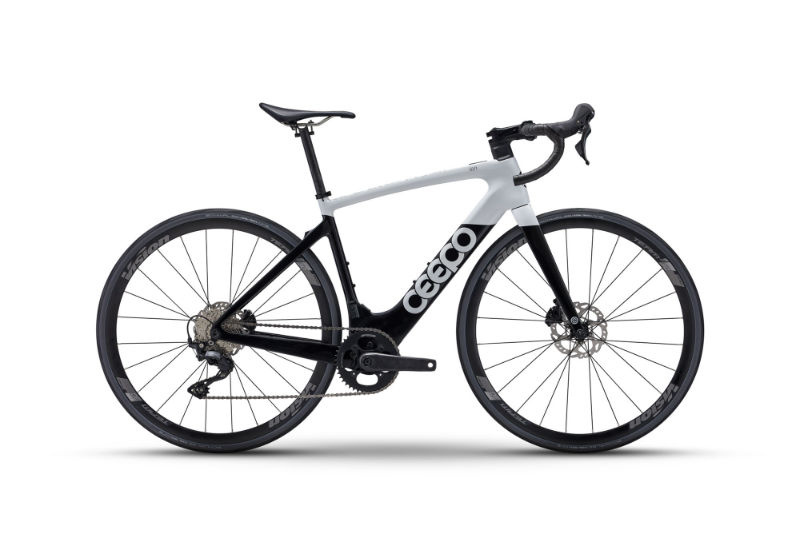

2025 Ceepo ion geometry
Full frame geometry for the 2025 Ceepo ion, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 525 | 370 | 75 | 71.5 | 105 | 511 | 440 | 679.8 | 80 | 577 | 425 | 989 | 50 |
| M | 555 | 380 | 74.5 | 72 | 135 | 534 | 480 | 716.8 | 80 | 592 | 425 | 1004 | 50 |
| L | 580 | 390 | 73.5 | 72 | 161 | 562 | 520 | 751.2 | 80 | 610 | 425 | 1022 | 50 |
| XL | 605 | 400 | 72.5 | 72 | 188 | 591 | 560 | 780.4 | 80 | 628 | 425 | 1041 | 50 |
All measurements in millimetres unless marked (°) for angles.
