2026 Ceepo · TD

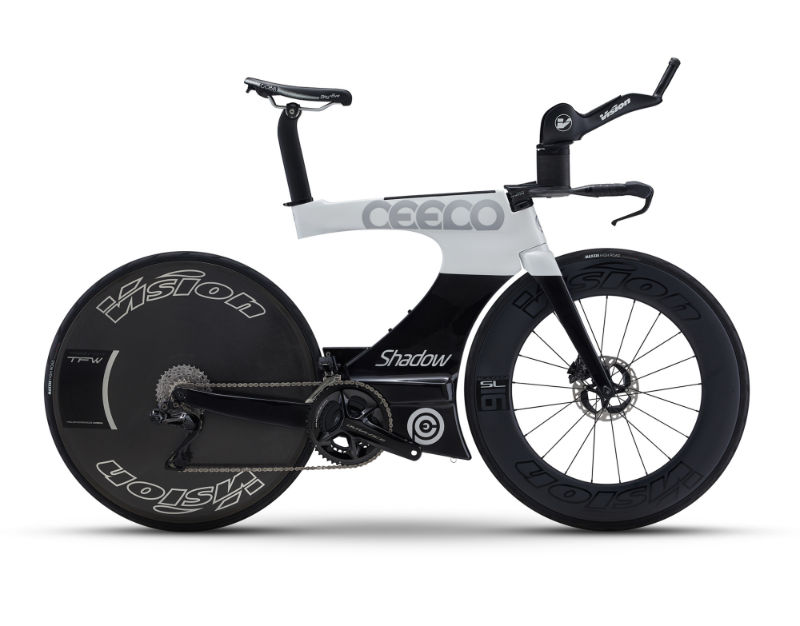

2026 Ceepo Shadow geometry
Full frame geometry for the 2026 Ceepo Shadow, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 498 | 405 | 79 | 71 | 80 | 502 | 440 | 707 | 75 | 601 | 400 | 989 | 43 |
| M | 510 | 420 | 78.5 | 71 | 93 | 523.7 | 537 | 799 | 75 | 620 | 400 | 1008 | 43 |
| L | 540 | 435 | 78.5 | 71.5 | 122 | 544.8 | 564 | 825 | 75 | 640 | 400 | 1029 | 43 |
All measurements in millimetres unless marked (°) for angles.
