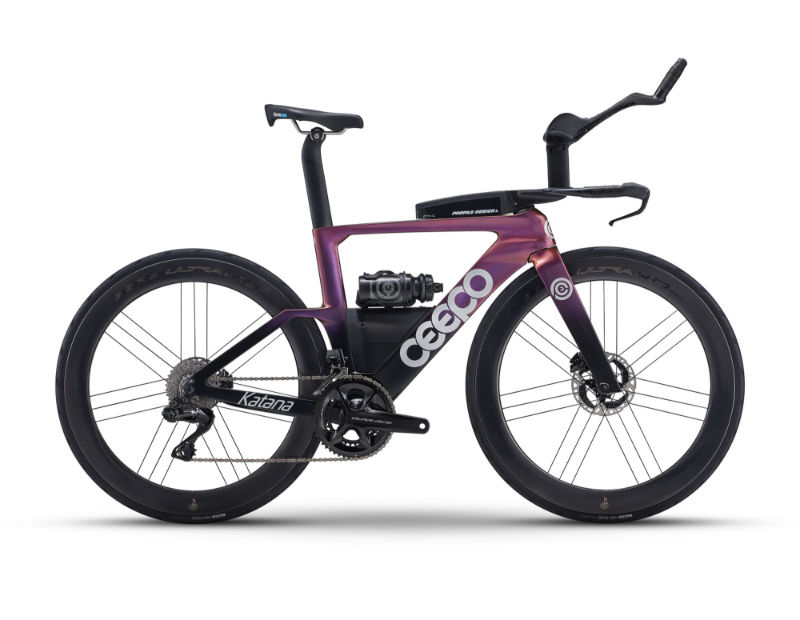

2025 Ceepo Katana geometry
Full frame geometry for the 2025 Ceepo Katana, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 480 | 400 | 81.5 | 71 | 80 | 472 | 430 | 709 | 75 | 592 | 400 | 980 | 45 |
| M | 500 | 420 | 81 | 71 | 101 | 499 | 470 | 744 | 75 | 619 | 400 | 1007 | 45 |
| L | 530 | 440 | 80.5 | 71 | 133 | 529 | 510 | 783 | 75 | 649 | 400 | 1037 | 45 |
| XL | 560 | 460 | 80 | 71 | 164 | 559 | 550 | 821 | 75 | 679 | 400 | 1068 | 45 |
All measurements in millimetres unless marked (°) for angles.
