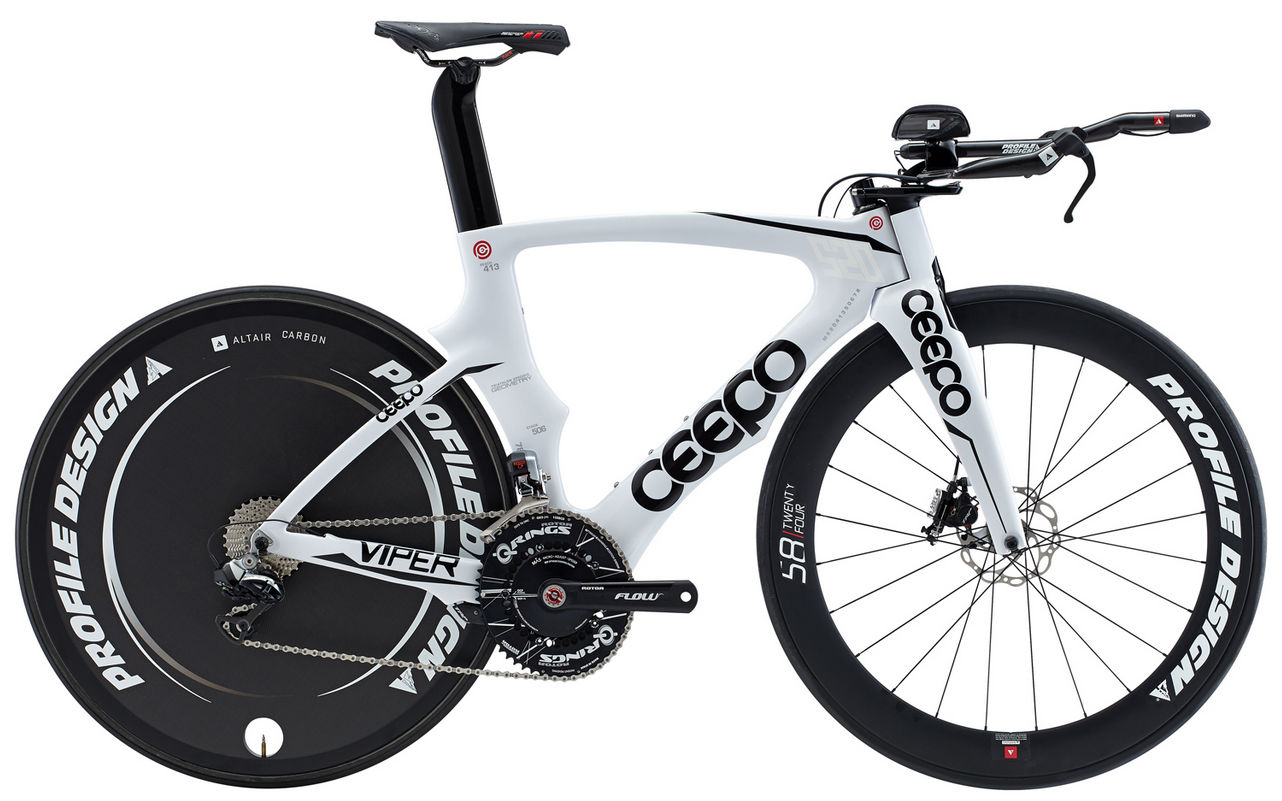

2015 Ceepo Viper 2015 geometry
Full frame geometry for the 2015 Ceepo Viper 2015, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 487 | 401 | 78.5 | 71.5 | 85 | 500 | 725 | 70 | 390 | 969 | 43 | 66 |
| M | 506 | 413 | 78 | 72.5 | 100 | 520 | 762 | 70 | 390 | 978 | 43 | 60 |
| L | 524 | 424 | 77.5 | 72.5 | 120 | 540 | 788 | 70 | 390 | 996 | 43 | 60 |
| XL | 543 | 435 | 77 | 72.5 | 140 | 560 | 808 | 70 | 390 | 1013 | 43 | 60 |
All measurements in millimetres unless marked (°) for angles.
